EREQUEST:4012 An invalid tabular data stream (TDS) collation was encountered when SP executed

I am trying to send TVP from nodejs to SQL server stored procedure along with other parameters. When the stored procedure is executed the error is triggered.

Expected behaviour:

When i try to execute from the query from SQL server it works fine. I expect the same to happen.

DECLARE	@return_value int
DECLARE @priceList LocationPricingTableTyp
DECLARE @primKey uniqueidentifier
	 SET @primKey = NEWID();
INSERT INTO @priceList
SELECT @primKey, 55676123, 12.0, 15.0,'young','summary';

EXEC	@return_value = [dbo].[sp_LocationMaster_Create]
		@LocationId = 55676123,
		@Language = 'aen',
		@IsActive = 1,
		@TblLocationPrice = @priceList
SELECT	'Return Value' = @return_value

GO

Actual behaviour:

When i executing from the nodejs

    const LocationPricingTableTyp = new sql.Table()
    LocationPricingTableTyp.columns.add('LocationId', sql.Int)
    LocationPricingTableTyp.columns.add('LowestPrice', sql.Decimal)
    LocationPricingTableTyp.columns.add('HighestPrice', sql.Decimal)
    LocationPricingTableTyp.columns.add('PriceType', sql.VarChar)
    LocationPricingTableTyp.columns.add('Summary', sql.Text)
    // Add rows
    LocationPricingTableTyp.rows.add(777,12.0,15.0,'young','summary')

          SQLrequest.input('LocationId'				         ,sql.Int      ,itemobj.baseId)
          SQLrequest.input('Keywords'					,sql.Text     ,itemobj.Keywords)
          SQLrequest.input('IsDeleted'				        ,sql.Bit      ,true)
          SQLrequest.input('IsActive'					        ,sql.Bit      ,true)
          SQLrequest.input('TblLocationPrice'                              ,LocationPricingTableTyp)
          SQLrequest.execute("sp_LocationMaster_Create", (err, recordset) => {
            if (err){

              console.log('Not added due to following error')
              console.log(err)

            }else{
            // send records as a response
            console.log('successfully added to Master');

            }
            });

Error:“An invalid tabular data stream (TDS) collation was encountered.”

Software versions

• NodeJS: 8.9.4
• mssql: 4.2.2
• SQL Server studio: 17.5

[deepanigi]

@deepanigi the fist thing you need to do is provide us with code to replicate the problem.

At the moment the code you’re provided is not code that can replicate the problem because it contains material errors that would prevent it from running.

Please provide a working code sample that reproduces the issue. I have mentioned the script and stored procedure below.

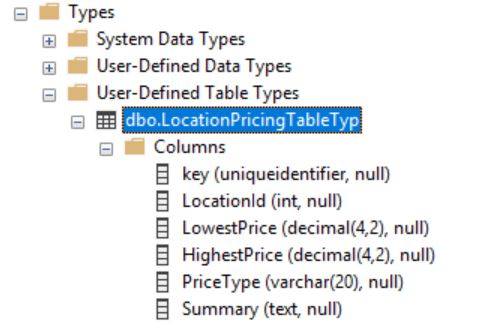

Table Type Declared

Nodejs Script File nodejs.txt

var sql = require("mssql");
var guid = require("guid");
let pool;
const config = {
    user: 'hello',
    password: 'password',
    server: 'database.windows.net',
    database: 'DB_DEV',

    options: {
        encrypt: true,
    },
};

const LocationPricingTableTyp = new sql.Table();
LocationPricingTableTyp.columns.add('Key', sql.UniqueIdentifier);
LocationPricingTableTyp.columns.add('LocationId', sql.Int);
LocationPricingTableTyp.columns.add('LowestPrice', sql.Decimal);
LocationPricingTableTyp.columns.add('HighestPrice', sql.Decimal);
LocationPricingTableTyp.columns.add('PriceType', sql.VarChar);
LocationPricingTableTyp.columns.add('Summary', sql.Text);
// Add rows// Values are in same order as columns.
let key = guid.raw();
LocationPricingTableTyp.rows.add(key, 777, 12.0, 15.0, 'young', 'summary');
DBLocationMaster().then(function (value) {

});


async function DBLocationMaster() {
    try {
        pool = await sql.connect(config);


        let SQLrequest = await pool.request();

        SQLrequest.input('LocationId', sql.Int, '123');
        SQLrequest.input('Language', sql.VarChar, 'en');
        SQLrequest.input('IsActive', sql.Bit, true);
        SQLrequest.input('TblLocationPrice', LocationPricingTableTyp);
        SQLrequest.execute("sp_LocationMaster_Create", (err, recordset) => {
            if (err) {
                console.log('Location not added due to following error');
                console.log(err);
            }
            else {
                console.log('Location successfully added to Master');
            }
        });

    } catch (err) {
        // ... error checks
        console.log(err);
    }
}

StoredProcedure

SP.txt

[willmorgan]

Hi, which version of node-mssql are you using?
