Closing current session due to invalid msg order

Hi,recently I have some problems with MQTT: I have a Respberry Pi 3.5 and I run python script on it to collect sounds and upload result telemetry to the Thingsboard ，here is the code for the python script :

import paho.mqtt.client as mqtt
import os, time, json,sys,socket,base64
import requests
sys.path.append('/home/pi/paho.mqtt.python/src/')
from mel_code import model_class
from configparser import ConfigParser
import logging
logging.basicConfig(level=logging.DEBUG)
logger = logging.getLogger(__name__)

ENCODING = 'utf-8'
print(sys.path)
cfg = ConfigParser()
cfg.read('/home/pi/paho.mqtt.python/src/voice/device_config.cfg')
cfg.read('device_config.cfg')
host = cfg.get('address', 'host')
port = cfg.getint('address', 'port')
audio_path = cfg.get('checking', 'audio_path')
audio_upload_url = cfg.get('checking', 'audio_upload_url')

whether_send_audio = cfg.getboolean('common', 'whether_send_audio')

voice_status = {"0": "NORMAL", "3": "BELT_MALFUNCTION", "4": "PILLOW_MALFUNCTION", "2": "WHITE_NOISE", "1": "MALFUNCTION"}

keep_alive = 60

access_token = cfg.get('address', 'access_token')

def on_connect(client, userdata, flags, rc):
    print("Connected with result code "+str(rc))


def on_message(client, userdata, msg):
    print(msg.topic+" "+str(msg.payload))


def getserial():
    # Extract serial from cpuinfo file
    cpu_serial = "0000000000000000"
    try:
        f = open('/proc/cpuinfo', 'r')
        for line in f:
            if line[0:6] == 'Serial':
                cpu_serial = line[10:26]
        f.close()
    except:
        cpu_serial = "ERROR000000000"

    return cpu_serial


serial_number = getserial()


def publish_message(tile,payload,qos):
    current_time = time.strftime("%Y%m%d%H%M%S", time.localtime())

    print(payload)
    client = mqtt.Client(serial_number+current_time)
    client.enable_logger(logger)
    client.on_connect = on_connect
    client.on_message = on_message
    client.username_pw_set(access_token)
    client.connect(host, port, keep_alive)
    print(payload)
    client.publish(tile, payload=payload, qos=qos)
    time.sleep(0.1)
    client.loop_start()
    client.disconnect()


def send_data_to_server(audio_path, file_name, transfer_file_name):

    print("Start to upload audio file ")
    f = open(audio_path + file_name, "rb")
    audio_data = f.read()
    audio_bytes = bytearray(audio_data)

    multipart_form_data = {
        'file': (str(transfer_file_name), audio_bytes),
        'originalFilename': ('', str(transfer_file_name)),
    }
    response = requests.post(audio_upload_url + '/v1/sensor/audio', files=multipart_form_data)
    print(response.status_code)


def record_sound(input_audio_path, audio_name):
    ##获取当前时间
    audio_file_whole_path = input_audio_path + audio_name
    # 录制声音
    os.system("arecord -d 20 -f cd -c 1 -t wav " + audio_file_whole_path)
    return audio_file_whole_path


def publish_audio_file():
    current_time = time.strftime("%Y%m%d%H%M%S", time.localtime())
    audio_name = current_time + '.wav'
    audio_ab_path = record_sound(audio_path,audio_name)
    f = open(audio_ab_path, "rb")
    #f = open("/home/pi/record/test.txt","rb")
    audio_data = f.read()
    audio_bytes = bytes(audio_data)
    #publish_message("voice/audio", audio_bytes, 0)
    publish_message("v1/devices/me/telemetry", audio_bytes, 0)
    f.close()


def get_host_ip():
        try:
            s = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
            s.connect(('8.8.8.8', 80))
            ip = s.getsockname()[0]
        finally:
            s.close()

        return ip


def get_voice_status(status):
    if status == 1:
        return voice_status['1']
    elif status == 0:
        return voice_status['0']
    elif status == 2:
        return voice_status['2']
    elif status == 3:
        return voice_status['3']
    elif status == 4:
        return voice_status['4']
    else:
        return voice_status['1']


def public_warning_message():
    ai_engine_module = model_class.AudioModel()

    current_time = time.strftime("%Y%m%d%H%M%S", time.localtime())
    audio_name = current_time + '.wav'
    audio_ab_path = record_sound(audio_path, audio_name)
    status = ai_engine_module.predict(audio_ab_path)
    print("Ai Response" + str(status))

    voice_type = get_voice_status(status)
    transfer_file_name = current_time + '_' + voice_type + '_' + serial_number + '.wav'

    if whether_send_audio:
        send_data_to_server(audio_path, audio_name, transfer_file_name)

    ip = get_host_ip()
    message = json.dumps({"deviceSerialNo": serial_number, "ip": ip, "status": status, 'file_name': str(transfer_file_name)})
    publish_message("v1/devices/me/telemetry", message, 1)


if __name__ == "__main__":
    #publish_message("sensor", "Hello Broker ", 0)
    #publish_audio_file()
    public_warning_message()

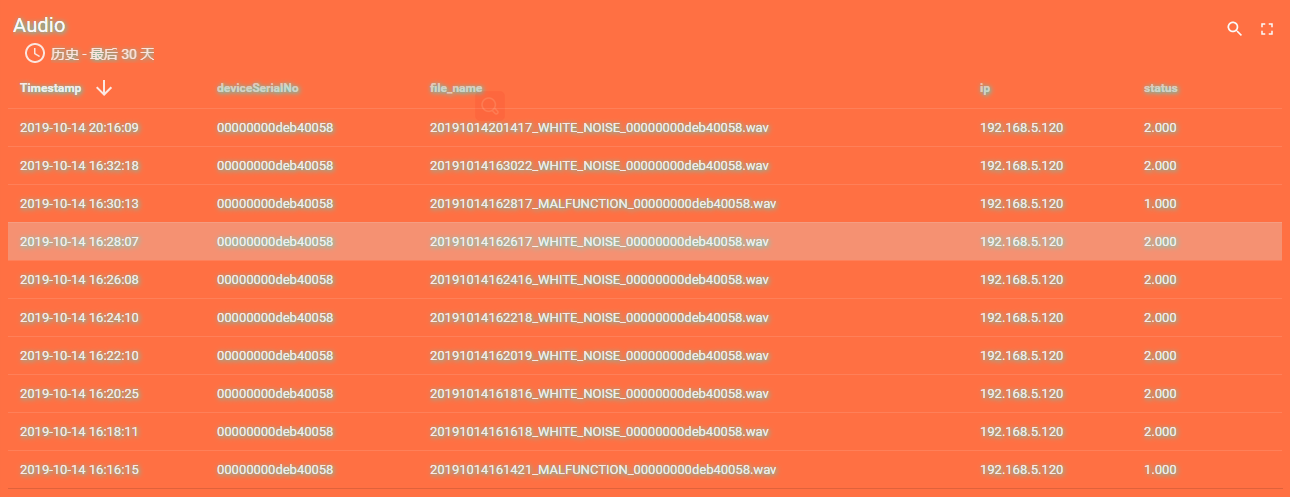

I’m sure it can successfully upload the data in the 2.3.9 snapshot version, here is the history data:

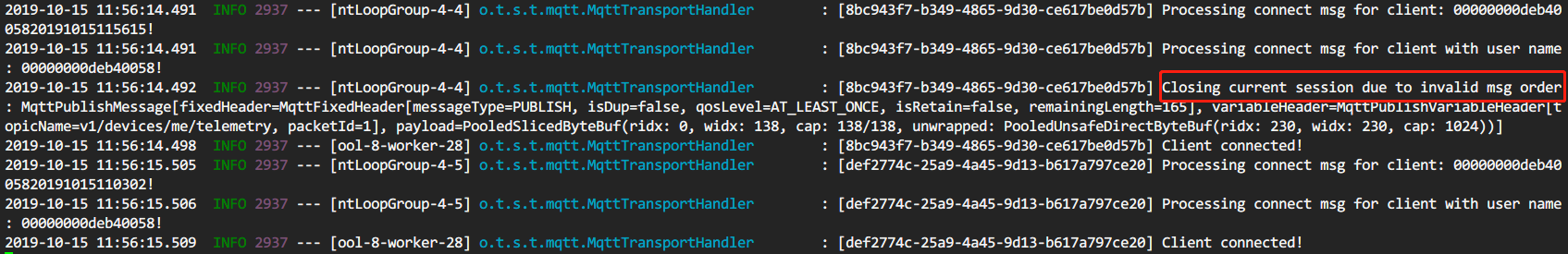

now I update to 2.4.1-release version, thingsboard can not recive the telemetry，here is the logs:

I don’t know why he shut down sessions for no reason If anyone has had the same problem as me, please tell me

[wanZzz6]

Just add time.sleep(1) after your client.connect()👌

[ashvayka]

@piqueza it would be interesting to calculate network traffic consumed by such application with different protocols used. I am quite sure that even HTTP would be more efficient in this case. CoAP - for sure.
