Combine Control Widgets with Latest Values

Hello Everyone,

I’m trying to create a custom widget in which I can get the latest values from a device updating periodically (everytime they change) and from the same widget have a button or some buttons that send RPC commands to the device.

I tried mixing the code from the RPC Commands widget with the Attribute Card widget code, both from the tutorial on how to develop widgets. For some reason I cant send the RPC command, it seems that it needs a “success(response)” and “fail(rejection)”, but when I run the RPC code from within the Attribute Card widget, these response and rejection dont seem to be generating.

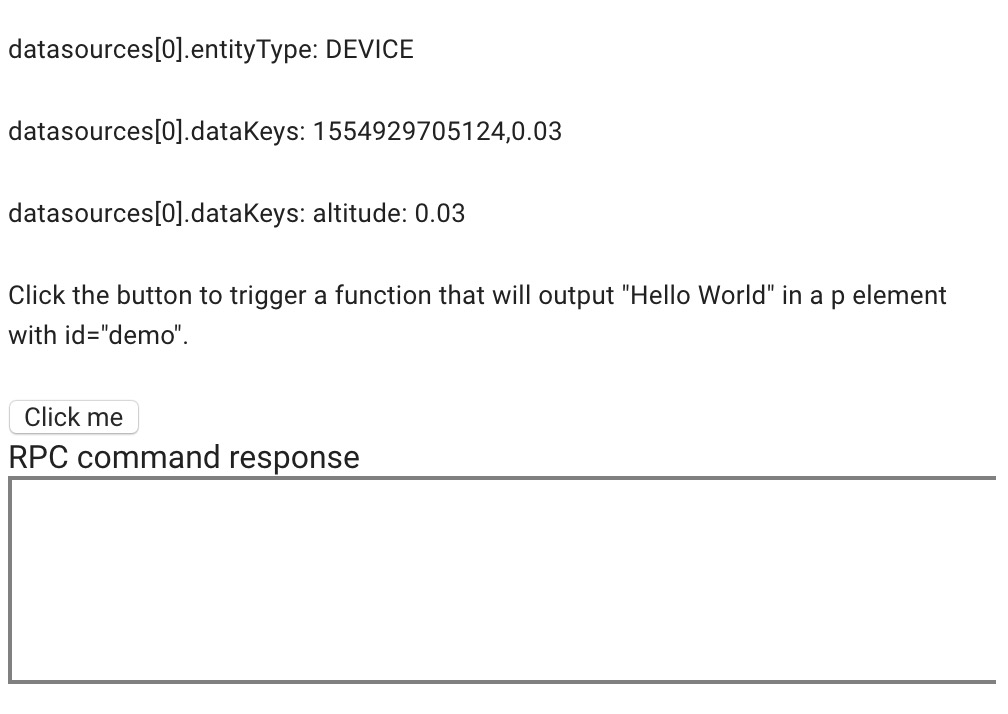

### This is what im trying to build:

### This is my Javascript code:

---

`self.onInit = function() {

self.ctx.$scope.sendCommand = function() {
        console.log("0");
    // var rpcMethod = self.ctx.$scope.rpcMethod;
    var rpcMethod = "setValue";
    // var rpcParams = self.ctx.$scope.rpcParams;
    var rpcParams = "True";
    var timeout = self.ctx.settings.requestTimeout;
    var oneWayElseTwoWay = self.ctx.settings.oneWayElseTwoWay ? true : false;

    var commandPromise;
    if (oneWayElseTwoWay) {
        commandPromise = self.ctx.controlApi.sendOneWayCommand(rpcMethod, rpcParams, timeout);
            console.log("1");
            console.log(timeout)
            console.log(commandPromise);
    } else {
        commandPromise = self.ctx.controlApi.sendTwoWayCommand(rpcMethod, rpcParams, timeout);
            console.log("2");
    }

    // console.log("Response:" + response);
    commandPromise.then(
        function success(response) {

            if (oneWayElseTwoWay) {
                self.ctx.$scope.rpcCommandResponse = "Command was successfully received by device.<br/> No response body because of one way command mode.";
                console.log("3");
            } else {
                self.ctx.$scope.rpcCommandResponse = "Response from device:<br/>";
                self.ctx.$scope.rpcCommandResponse += angular.toJson(response);
                console.log("4");
            }
        },

        function fail(rejection) {
            console.log("Rejection:" + rejection);
            console.log("5");
            self.ctx.$scope.rpcCommandResponse = "Failed to send command to the device:<br/>"
            console.log("6");
            self.ctx.$scope.rpcCommandResponse += "Status: " + rejection.status + "<br/>";
            self.ctx.$scope.rpcCommandResponse += "Status text: '" + rejection.statusText + "'";
            console.log("7");
        }

    );
}

var button = document.getElementById("THEbutton");
button.addEventListener("click", changeOwnText);

function changeOwnText(){
    button.innerHTML += "CLICK!";
}

self.ctx.datasourceTitleCells = [];
self.ctx.valueCells = [];
self.ctx.labelCells = [];

for (var i=0; i < self.ctx.datasources.length; i++) {
    var tbDatasource = self.ctx.datasources[i];

    var datasourceId = 'tbDatasource' + i;
    self.ctx.$container.append(
        "<div id='" + datasourceId +
        "' class='tbDatasource-container'></div>"
    );

    var datasourceContainer = $('#' + datasourceId,
        self.ctx.$container);

    datasourceContainer.append(
        "<div class='tbDatasource-title'>" +
        tbDatasource.name + "</div>"
    );

    var datasourceTitleCell = $('.tbDatasource-title', datasourceContainer);
    self.ctx.datasourceTitleCells.push(datasourceTitleCell);

    var tableId = 'table' + i;
    datasourceContainer.append(
        "<table id='" + tableId +
        "' class='tbDatasource-table'><col width='30%'><col width='70%'></table>"
    );
    var table = $('#' + tableId, self.ctx.$container);

    for (var a = 0; a < tbDatasource.dataKeys.length; a++) {
        var dataKey = tbDatasource.dataKeys[a];
        var labelCellId = 'labelCell' + a;
        var cellId = 'cell' + a;
        table.append("<tr><td id='" + labelCellId + "'>" + dataKey.label +
            "</td><td id='" + cellId +
            "'></td></tr>");
        var labelCell = $('#' + labelCellId, table);
        self.ctx.labelCells.push(labelCell);
        var valueCell = $('#' + cellId, table);
        self.ctx.valueCells.push(valueCell);
    }
}

self.onResize();

}

self.onDataUpdated = function() { for (var i = 0; i < self.ctx.valueCells.length; i++) { var cellData = self.ctx.data[i]; if (cellData && cellData.data && cellData.data.length > 0) { var tvPair = cellData.data[cellData.data.length - 1]; var value = tvPair[1]; var textValue; //toDo -> + IsNumber

        if (isNumber(value)) {
            var decimals = self.ctx.decimals;
            var units = self.ctx.units;
            if (cellData.dataKey.decimals || cellData.dataKey.decimals === 0) {
                decimals = cellData.dataKey.decimals;
            }
            if (cellData.dataKey.units) {
                units = cellData.dataKey.units;
            }
            txtValue = self.ctx.utils.formatValue(value, decimals, units, true);
        } else {
            txtValue = value;
        }
        self.ctx.valueCells[i].html(txtValue);
        document.getElementById("demo").innerHTML = "datasources[0].name: " + self.ctx.datasources[0].name;
        document.getElementById("demo2").innerHTML = "datasources[0].entityName: " + self.ctx.datasources[0].entityName;
        document.getElementById("demo3").innerHTML = "datasources[0].entityType: " + self.ctx.datasources[0].entityType;
        document.getElementById("demo4").innerHTML = "datasources[0].dataKeys: " + String(self.ctx.data[0].data[0]);
        document.getElementById("demo5").innerHTML = "datasources[0].dataKeys: " + String(self.ctx.datasources[0].dataKeys[0].label + ": " + self.ctx.data[0].data[0][1]);
        // console.log("datasources[0].dataKeys: " + self.ctx.utils.formatValue(self.ctx.datasources[0].dataKeys[0].label, decimals, units, true));
    }
}

function isNumber(n) {
    return !isNaN(parseFloat(n)) && isFinite(n);
}

}

self.onResize = function() { var datasoirceTitleFontSize = self.ctx.height/8; if (self.ctx.width/self.ctx.height <= 1.5) { datasoirceTitleFontSize = self.ctx.width/12; } datasoirceTitleFontSize = Math.min(datasoirceTitleFontSize, 20); for (var i = 0; i < self.ctx.datasourceTitleCells.length; i++) { self.ctx.datasourceTitleCells[i].css(‘font-size’, datasoirceTitleFontSize+‘px’); } var valueFontSize = self.ctx.height/9; var labelFontSize = self.ctx.height/9; if (self.ctx.width/self.ctx.height <= 1.5) { valueFontSize = self.ctx.width/15; labelFontSize = self.ctx.width/15; } valueFontSize = Math.min(valueFontSize, 18); labelFontSize = Math.min(labelFontSize, 18);

for (i = 0; i < self.ctx.valueCells; i++) {
    self.ctx.valueCells[i].css('font-size', valueFontSize+'px');
    self.ctx.valueCells[i].css('height', valueFontSize*2.5+'px');
    self.ctx.valueCells[i].css('padding', '0px ' + valueFontSize + 'px');
    self.ctx.labelCells[i].css('font-size', labelFontSize+'px');
    self.ctx.labelCells[i].css('height', labelFontSize*2.5+'px');
    self.ctx.labelCells[i].css('padding', '0px ' + labelFontSize + 'px');
}

}

self.onDestroy = function() { } `

---

---

---

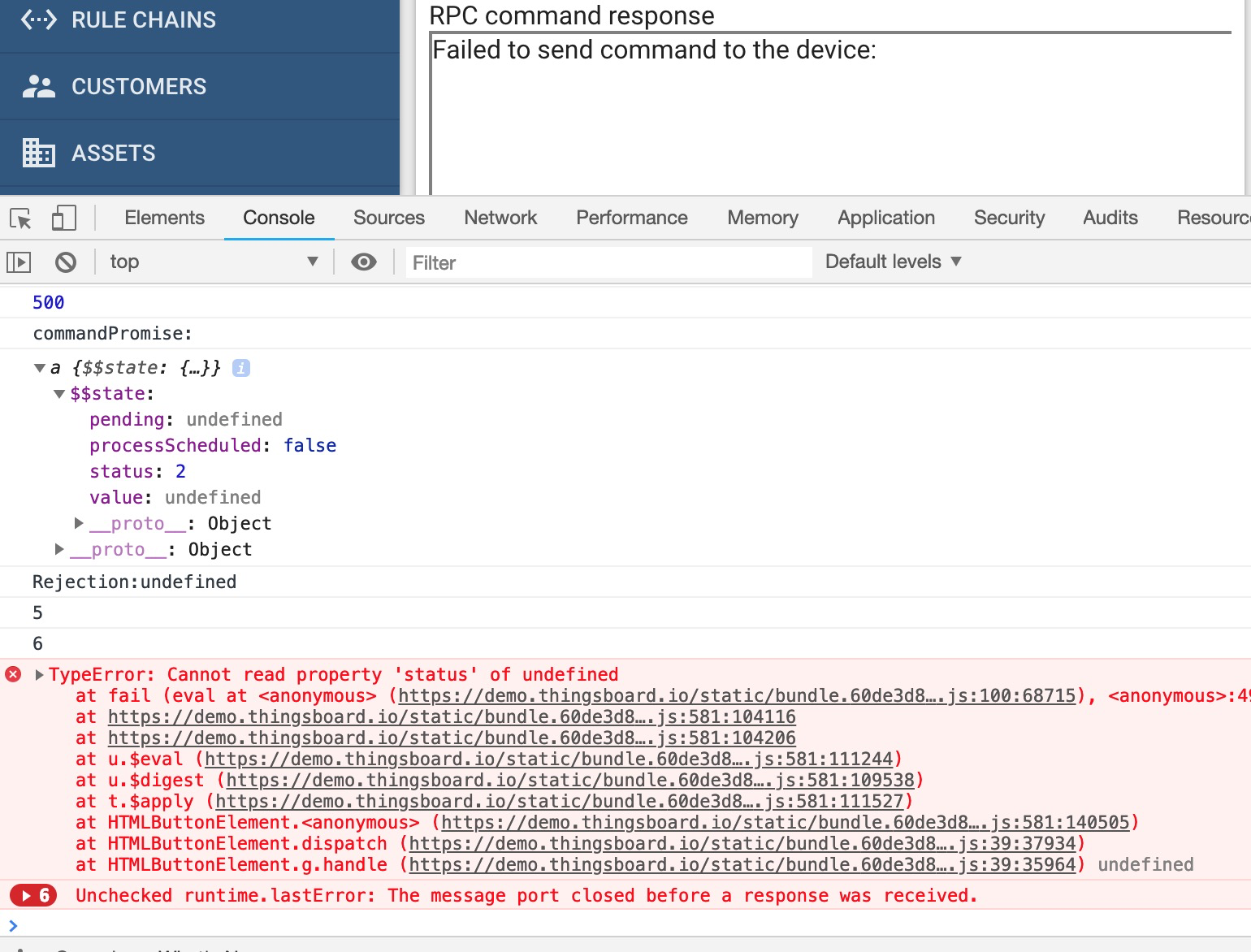

### This is what i get when i console.log(commandPromise), and the general error(in red):

### And this is the error i get when trying to console.log(“Rejection” + rejection):

Rejection:undefined

---

I hope someone can guide me in the right direction, I have tried it all but I dont know what Im missing.

THANKS A LOT IN ADVANCE

Daniel

[PeterMair]

Hi @paolofrs,

it isn’t possible to use self.ctx.controlApi.sendTwoWayCommand on a time/last value widget. I use this solution for sendOneWayCommand, but you can replace sendOneWayRpcCommand with sendTwoWayRpcCommand:

// Get deviceid from first datasource

var deviceid = self.ctx.datasources[0].entityId;

// Get deviceService

var $injector = self.ctx.$scope.$injector;
var $deviceservice = $injector.get(self.ctx.servicesMap.get('deviceService'));

// Send oneWay RPC-Command, with requestBody like {"method": "methodname", "params": 1}

commandPromise  = $deviceservice.sendOneWayRpcCommand(deviceid, requestBody, { ignoreErrors: true  });
commandPromise.subscribe(
  function success(response) {
   console.log("Command was successfully received by device. No response body because of one way command mode.");
  },

  function fail(rejection) {

      console.log("Failed to send command to the device:");
      console.log(rejection);

  }
);

[lvojp]

Hello everyone. I’m just worried about this issue right now.

Specifically, I want to press the button, wait for the device to respond, and display the data returned from the device in the widget.

Is there a way to solve this specification?

Thank you for your teaching.
