Zigbee light bulb color/temperature control not working from Apple Home app

See original GitHub issue

Describe the bug I am setting up my RGB Zigbee light bulb. I encountered two problems.

  1. Temperature selection is not “mapped” correctly. Selecting warm temperature in Apple Home turns lightbulb to cold temperature and vice-versa(cold temperature in Apple Home sets lightbulb to warm). Screenshots appended for this issue.
  2. Once “Temperature” is tinkered with on Apple Home app, light bulb switches to “White” mode and can’t be put back into “Colour” mode by changing colour in Home app. The only way I can set the lightbulb to “Colour” mode is via Tuya Smart app.

Expected behavior

  1. When I set temperature to warm I want my lightbulb to have warm temperature. If I set it to cold I want it to turn cold.
  2. After I change temperature and then colour from Apple Home app I want my lightbulb to switch to color mode without accessing Tuya Smart app.

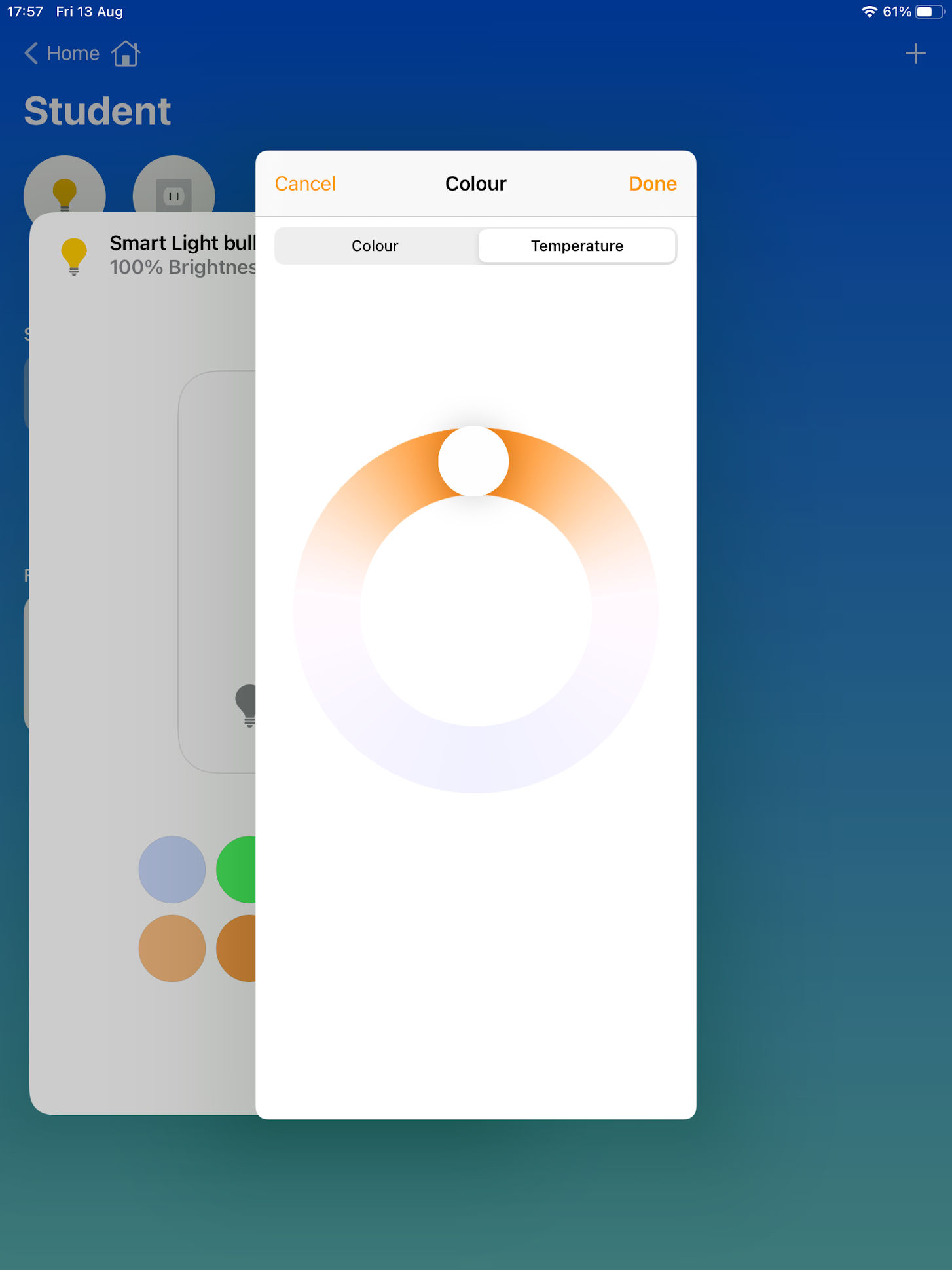

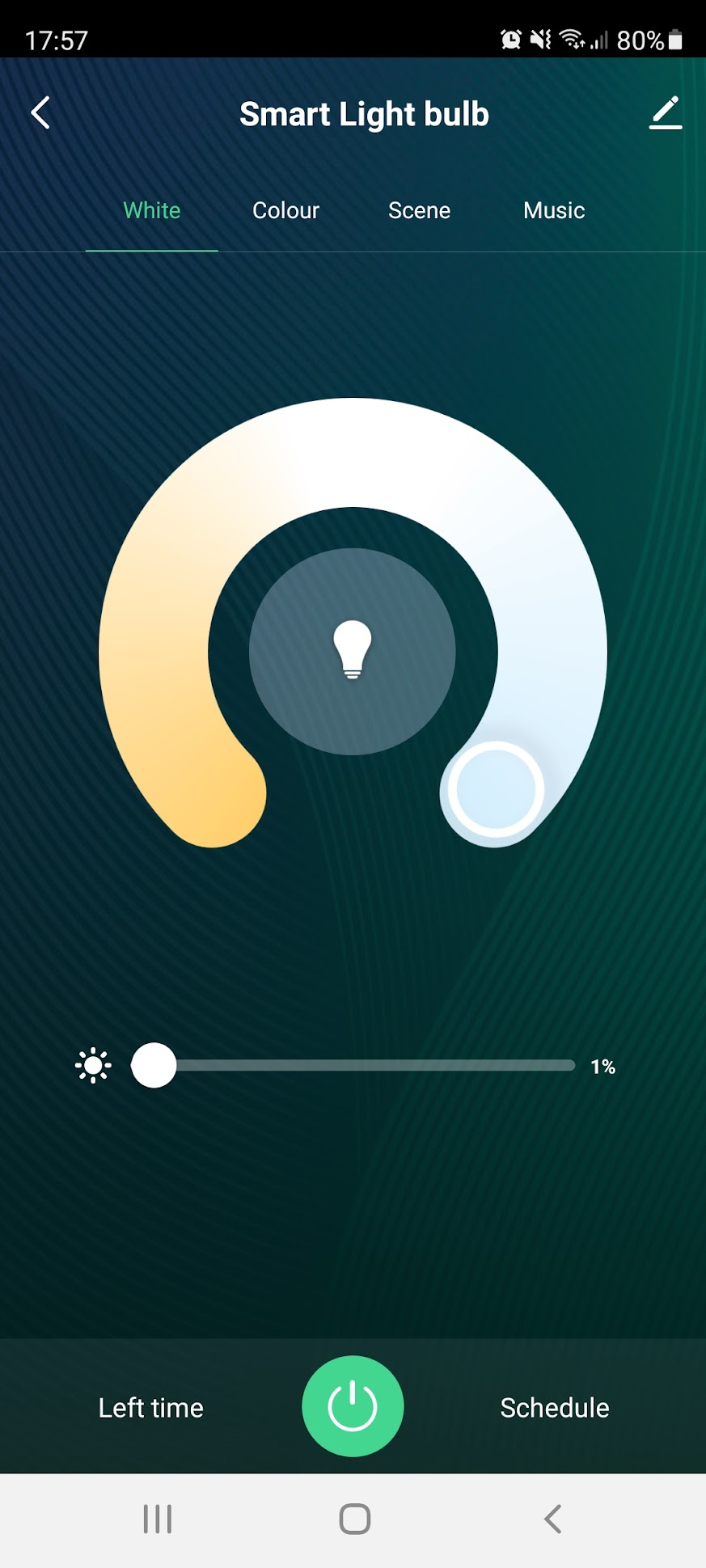

Screenshots Temperature: In Apple’s home app In Tuya Smart app

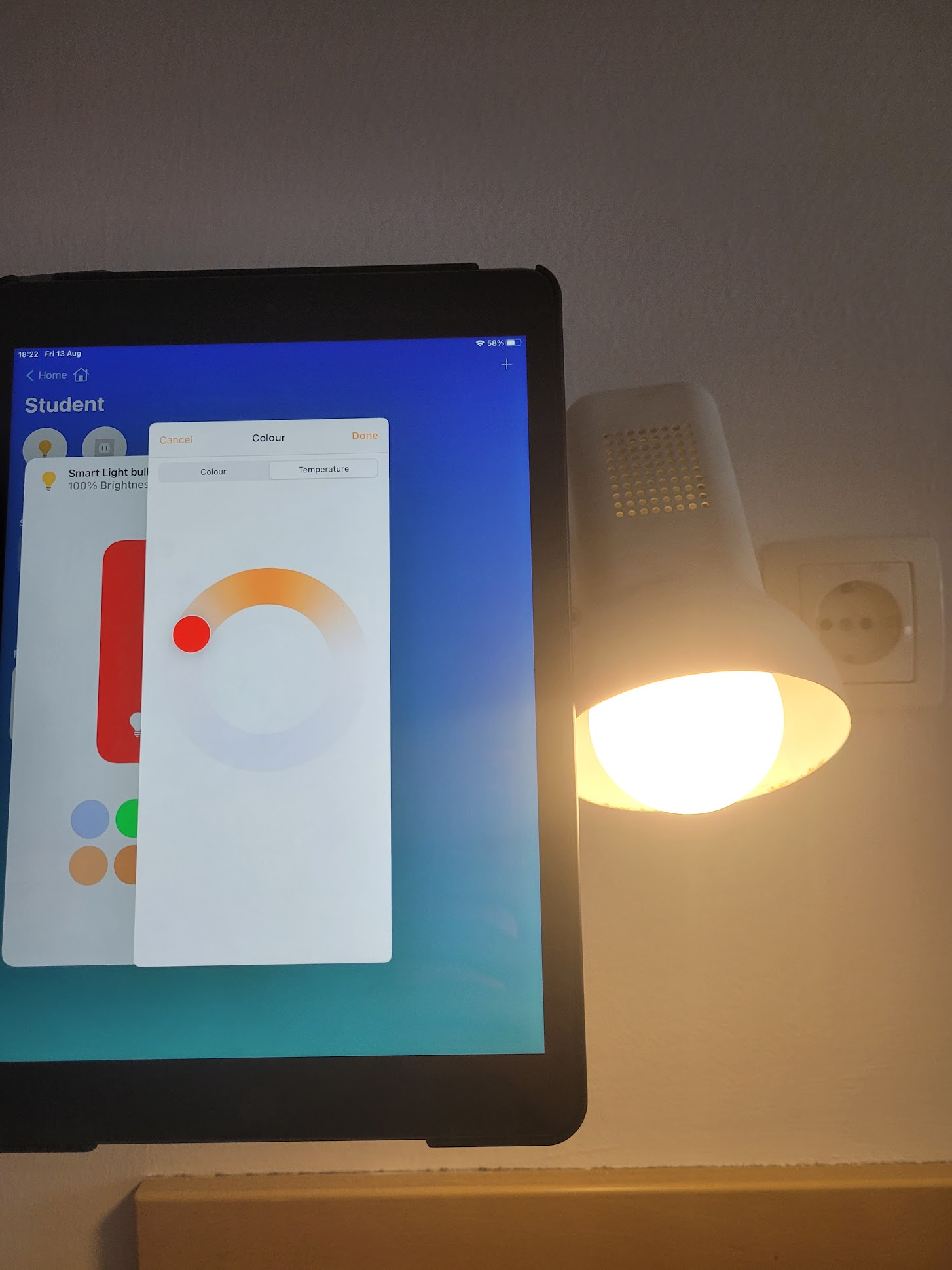

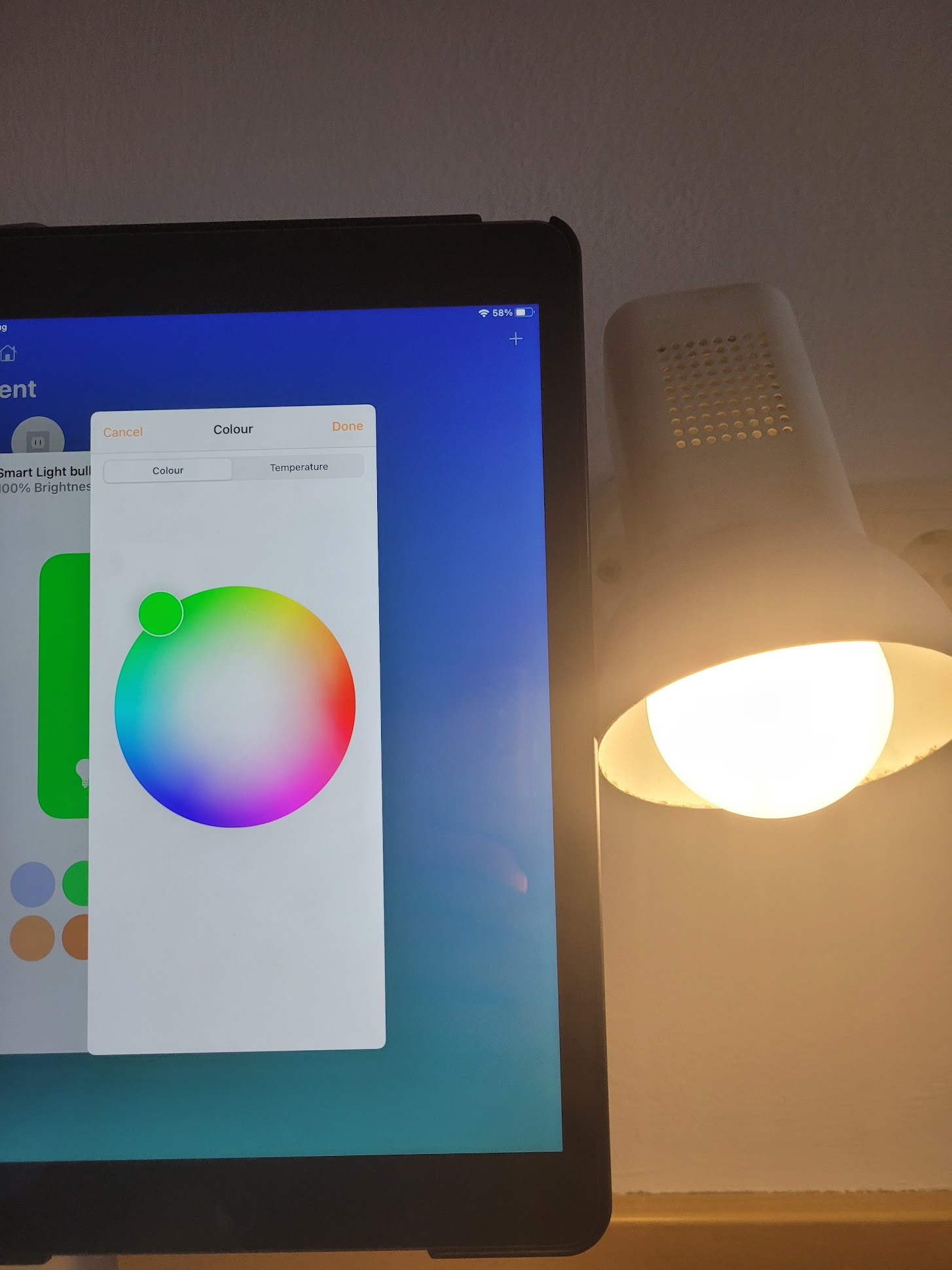

Color: Change light temperature Change color Set light bulb to color inside Tuya Smart App

Device info (please complete the following information, which can be found in log): request path = /v1.0/iot-01/associated-users/devices

                {
                    "active_time": 1628786261,
                    "biz_type": 0,
                    "category": "dj",
                    "create_time": 1628785271,
                    "icon": "smart/icon/ay1533895021982bN2sO/d85a0c9fd07d4fba736daa5bffb4618d.png",
                    "id": "bf2b7370276d41d135l90k",
                    "ip": "",
                    "lat": "<censored>",
                    "local_key": "8ad87ce8f487424e",
                    "lon": "<censored>",
                    "model": "R9077",
                    "name": "Smart Light bulb",
                    "node_id": "842e14fffe0fcc2b",
                    "online": true,
                    "owner_id": "34087278",
                    "product_id": "keabpigv",
                    "product_name": "R9077 E27 RGB CCT Zigbee Bulb",
                    "status": [
                        {
                            "code": "switch_led",
                            "value": true
                        },
                        {
                            "code": "work_mode",
                            "value": "white"
                        },
                        {
                            "code": "bright_value_v2",
                            "value": 408
                        },
                        {
                            "code": "temp_value_v2",
                            "value": 0
                        },
                        {
                            "code": "colour_data_v2",
                            "value": "{\"h\":16,\"s\":1000,\"v\":408}"
                        },
                        {
                            "code": "scene_data_v2",
                            "value": "{\"scene_num\":6,\"scene_units\":[{\"bright\":0,\"h\":0,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000},{\"bright\":0,\"h\":120,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000},{\"bright\":0,\"h\":240,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000},{\"bright\":0,\"h\":61,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000},{\"bright\":0,\"h\":174,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000},{\"bright\":0,\"h\":275,\"s\":1000,\"temperature\":0,\"unit_change_mode\":\"jump\",\"unit_gradient_duration\":70,\"unit_switch_duration\":70,\"v\":1000}]}"
                        },
                        {
                            "code": "countdown_1",
                            "value": 0
                        },
                        {
                            "code": "control_data",
                            "value": ""
                        }

Device functions (please complete the following information, which can be found in log): request path = /v1.0/devices/functions

        {
            "category": "dj",
            "devices": [
                "bf2b7370276d41d135l90k"
            ],
            "functions": [
                {
                    "code": "switch_led",
                    "desc": "switch led",
                    "name": "switch led",
                    "type": "Boolean",
                    "values": "{}"
                },
                {
                    "code": "work_mode",
                    "desc": "work mode",
                    "name": "work mode",
                    "type": "Enum",
                    "values": "{\"range\":[\"white\",\"colour\",\"scene\",\"music\"]}"
                },
                {
                    "code": "bright_value_v2",
                    "desc": "bright value v2",
                    "name": "bright value v2",
                    "type": "Integer",
                    "values": "{\"min\":10,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}"
                },
                {
                    "code": "temp_value_v2",
                    "desc": "temp value v2",
                    "name": "temp value v2",
                    "type": "Integer",
                    "values": "{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}"
                },
                {
                    "code": "colour_data_v2",
                    "desc": "colour data v2",
                    "name": "colour data v2",
                    "type": "Json",
                    "values": "{\"h\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":360,\"step\":1},\"s\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1},\"v\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}}"
                },
                {
                    "code": "scene_data_v2",
                    "desc": "scene data v2",
                    "name": "scene data v2",
                    "type": "Json",
                    "values": "{\"scene_num\":{\"min\":1,\"scale\":0,\"max\":8,\"step\":1},\"scene_units\": {\"unit_change_mode\":{\"range\":[\"static\",\"jump\",\"gradient\"]},\"unit_switch_duration\":{\"min\":0,\"scale\":0,\"max\":100,\"step\":1},\"unit_gradient_duration\":{\"min\":0,\"scale\":0,\"max\":100,\"step\":1},\"bright\":{\"min\":0,\"scale\":0,\"max\":1000,\"step\":1},\"temperature\":{\"min\":0,\"scale\":0,\"max\":1000,\"step\":1},\"h\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":360,\"step\":1},\"s\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1},\"v\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}}}"
                },
                {
                    "code": "control_data",
                    "desc": "control data",
                    "name": "control data",
                    "type": "Json",
                    "values": "{\"change_mode\":{\"range\":[\"direct\",\"gradient\"]}, \"bright\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}, \"temperature\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":1000,\"step\":1}, \"h\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":360,\"step\":1},\"s\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":255,\"step\":1},\"v\":{\"min\":0,\"scale\":0,\"unit\":\"\",\"max\":255,\"step\":1}}"
                },
                {
                    "code": "countdown_1",
                    "desc": "countdown 1",
                    "name": "countdown 1",
                    "type": "Integer",
                    "values": "{\"unit\":\"\",\"min\":0,\"max\": 43200,\"scale\":0,\"step\":1}"
                }
            ],
            "product_id": "keabpigv"
        }

Additional context Add any other context or logs about the problem here.

Issue Analytics

  • State:closed
  • Created 2 years ago
  • Reactions:3
  • Comments:12 (2 by maintainers)

github_iconTop GitHub Comments

1reaction
lachydaves25commented, Aug 27, 2021

Colour temperature not being mapped properly is also happening for my Wi-Fi light bulb with only colour temperature control

0reactions
Torpidlittlecommented, May 10, 2022

Colour temperature not being mapped properly is also happening for my Wi-Fi light bulb with only colour temperature control

This is happening for me too. Colour temp seems to be inverted: cool white shows as warm and warm white shows as cool on Apple Homekit control? Please help!
