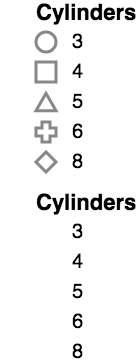

Legend shapes disappear with transparent fill

See original GitHub issue

See https://github.com/vega/vega-lite/issues/2719.

{
  "$schema": "https://vega.github.io/schema/vega/v3.0.json",
  "data": [
    {
      "name": "source_0",
      "url": "data/cars.json",
      "format": {
        "type": "json",
        "parse": {
          "Horsepower": "number",
          "Miles_per_Gallon": "number"
        }
      }
    }
  ],
  "scales": [
    {
      "name": "shape",
      "type": "ordinal",
      "domain": {"data": "source_0","field": "Cylinders","sort": true},
      "range": "symbol"
    }
  ],
  "legends": [
    {
      "shape": "shape",
      "title": "Cylinders"
    },
    {
      "shape": "shape",
      "title": "Cylinders",
      "encode": {
        "symbols": {"update": {"fill": {"value": "transparent"}}}
      }
    }
  ]
}

Issue Analytics

State:
Created 6 years ago
Comments:7 (5 by maintainers)

Top GitHub Comments

1reaction

jheercommented, Jul 30, 2017

@kanitw is right. I think we need to revert vega/vega-parser#46 and only suppress the default stroke when the fill color is bound to a scale at the top-level of the legend ({"fill": "fillScale", ...}. We currently suppress the default stroke when a custom fill encoding is applied as well, but this issue clearly shows that this was a poor choice…

0reactions

jowenscommented, Aug 4, 2017

I confirm 3.0.0-rc5 fixes this issue.
