Single cell colorizing not working as expected

See original GitHub issue

I’m submitting a … [X] very big thank you for this fantastic toolkit. Superb. [x ] bug report [x] feature request [ ] question about the decisions made in the repository
What is the current behavior?

Not working as expected.

Coloring a single cell using a render() function does not style the whole height of the row, simply the div it contains. Based on http://w2ui.com/web/demos/#!grid/grid-23

// the problem here is that it is not the TD that gets styled but the internal div ...
// A complete HTML/JS example is listed below
render: function (record, index, column_index) {
    var html = '<div style="background-color:#7F7F7F;">'+ record.email + '</div>';
    return html;
}

The second possible solution is suggested on here: https://stackoverflow.com/questions/38696758/add-custom-color-to-w2ui-cell-grid

// suggests the `1:` means style is applied to column 1 only?
w2ui: { style: "1: background-color:red; color:blue;" },

If the current behavior is a bug, please provide the steps to reproduce and if possible a screenshots.

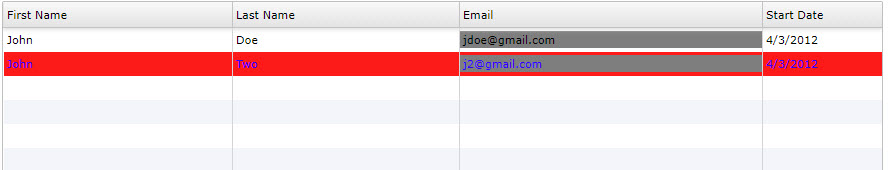

w2ui-cell-color

The .JS used to generate the screen shot:

<html>
<head>
    <title>W2UI Demo: grid-1</title>
    <script src=http://ajax.googleapis.com/ajax/libs/jquery/2.1.0/jquery.min.js></script>
    <script type=text/javascript src="http://rawgit.com/vitmalina/w2ui/master/dist/w2ui.min.js"></script>
    <link rel="stylesheet" type="text/css" href="http://rawgit.com/vitmalina/w2ui/master/dist/w2ui.min.css" />
</head>
<body>

<div id="grid" style="width: 50%; height: 350px;"></div>

<script type="text/javascript">
$(function () {
    $('#grid').w2grid({
        name: 'grid',
        method: 'GET', // need this to avoid 412 error on Safari
        columns: [
            { field: 'fname', text: 'First Name', size: '30%' },
            { field: 'lname', text: 'Last Name', size: '30%' },
            { field: 'email', text: 'Email', size: '40%',
                // based on http://w2ui.com/web/demos/#!grid/grid-23
                // the problem here is that it is not the TD that gets styled
                // but the internal div ...
                render: function (record, index, column_index) {
                    var html = '<div style="background-color:#7F7F7F;">'+ record.email + '</div>';
                    return html;
                }
            },
            { field: 'sdate', text: 'Start Date', size: '120px' }
        ],
        records: [
        { recid: 1,
            // default styling for reference
            fname: "John", lname: "Doe", email: "jdoe@gmail.com", sdate: "4/3/2012"
        },
        { recid: 2,
            // based on http://w2ui.com/web/demos/#!grid/grid-2
            // this works. entire row is blue text on red
            w2ui: { style: "background-color:red; color:blue;" },
            // https://stackoverflow.com/questions/38696758/add-custom-color-to-w2ui-cell-grid
            // suggests the `1:` means style is applied to column 1 only?
            // w2ui: { style: "1: background-color:red; color:blue;" },
            fname: "John", lname: "Two", email: "j2@gmail.com", sdate: "4/3/2012"
        },
        ]
    });
});
</script>
</body>
</html>

What is the expected behavior?

Ideally the cell would be colored on its own as specified.

Issue Analytics

State:
Created 4 years ago
Comments:8

Top GitHub Comments

1reaction

sturan2commented, May 28, 2019

Hi @g40, you can try the following code:

w2ui: {style: {0: ‘background-color: yellow; color: black;’,1: ‘background-color: grey; color: black;’}

https://codepen.io/anon/pen/EzpRWz

0reactions

mpf82commented, May 28, 2019

Sure, documentation and additional demos are always welcome =)

Hopefully @vitmalina and @mrg2001 find the time to look through the active PRs.

By the way, feel free to close this issue if your initial question has been answered.
