JPEG format is not available on GraphViz

See original GitHub issue

If I issue: https https://kroki.io/graphviz/svg/eNpLyUwvSizIUHBXqPZIzcnJ17ULzy_KSanlAgB1EAjQ I get the proper svg response.

If I issue: https https://kroki.io/graphviz/jpg/eNpLyUwvSizIUHBXqPZIzcnJ17ULzy_KSanlAgB1EAjQ I get: Error 400: Unsupported output format: jpg. Must be one of graphviz for png, svg or jpeg.

If I issue: https https://kroki.io/graphviz/jpeg/eNpLyUwvSizIUHBXqPZIzcnJ17ULzy_KSanlAgB1EAjQ I get: Error 500: Format: "jpeg" not recognized. Use one of: canon cmap cmapx cmapx_np dot dot_json eps fig gv imap imap_np ismap json json0 mp pdf pic plain plain-ext png pov ps ps2 svg svgz tk vdx vml vmlz x11 xdot xdot1.2 xdot1.4 xdot_json xlib (exit code 1)

So, it seems there is a problem with GraphViz and the jpeg output format.

Thanks, Paul

Issue Analytics

State:
Created a year ago
Comments:9 (7 by maintainers)

Top GitHub Comments

1reaction

Mogzttercommented, Dec 2, 2022

Fixed in 0.18.0

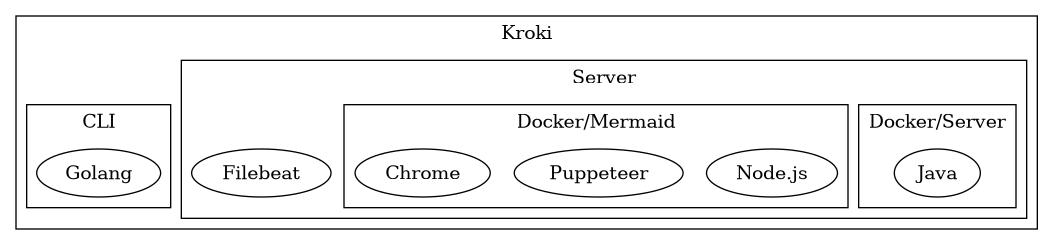

https://kroki.io/graphviz/jpeg/eNp9kM0KgzAQhO8-xZIHaKlX6Ulp6S-FPoDEuGhqbML6cyl594JVGyv1OMPMt8ukMiNucojg5QFUTfKRQjVVjRSbzgZQPEEFW2An0oVkQWfO0mLTx53CHalF6hsAO6kwQV4PesbIRPylOJxIiwJp_YMDOPKWD8ouQP0F6AWp5DJ1qOyqU1w9Kte6NcZgjZPrLMxJl8imH9g_8_jzecLzYSzvteLPLBgR1rNvJ7Rwmw==

0reactions

Mogzttercommented, Nov 9, 2022

Actually, the jpeg output is only available on Alpine “edge” 3.17 so it won’t be available in the next release of Kroki (unless this feature is backport to the 3.16 branch: https://gitlab.alpinelinux.org/alpine/aports/-/issues/14199#note_273532
