[Device Support Request] - URC4460BC0-X-R by Universal Electronics Inc or 4460 Comcast Xfinity Home Contact Sensor or UEI XHS2-UE Door/Window Sensor.

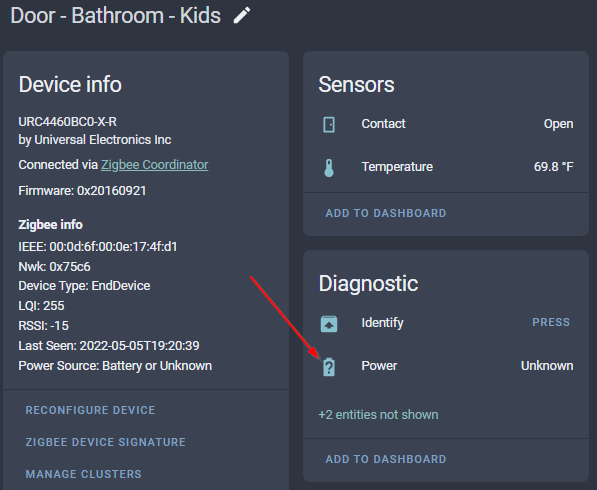

Is your feature request related to a problem? Please describe. The devices have a power entity (in Home Assistant), but it is unknown. I’d like to have the battery information available. This is my first device request, so if there’s anything I’ve missed, I’d be glad to provide it.

Device signature - this can be acquired by clicking on the "Zigbee Device Signature" button in the device settings

{
  "node_descriptor": "NodeDescriptor(logical_type=<LogicalType.EndDevice: 2>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.Freq2400MHz: 8>, mac_capability_flags=<MACCapabilityFlags.AllocateAddress: 128>, manufacturer_code=4335, maximum_buffer_size=82, maximum_incoming_transfer_size=82, server_mask=0, maximum_outgoing_transfer_size=82, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=True, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=True, *is_full_function_device=False, *is_mains_powered=False, *is_receiver_on_when_idle=False, *is_router=False, *is_security_capable=False)",
  "endpoints": {
    "1": {
      "profile_id": 260,
      "device_type": "0x0402",
      "in_clusters": [
        "0x0000",
        "0x0001",
        "0x0003",
        "0x0020",
        "0x0402",
        "0x0500",
        "0x0b05"
      ],
      "out_clusters": [
        "0x0019"
      ]
    }
  },
  "manufacturer": "Universal Electronics Inc",
  "model": "URC4460BC0-X-R",
  "class": "zigpy.device.Device"
}

Diagnostic information - this can be acquired by clicking on the "Download Diagnostics" button in the device settings

{
  "home_assistant": {
    "installation_type": "Home Assistant Supervised",
    "version": "2022.5.0",
    "dev": false,
    "hassio": true,
    "virtualenv": false,
    "python_version": "3.9.9",
    "docker": true,
    "arch": "x86_64",
    "timezone": "America/New_York",
    "os_name": "Linux",
    "os_version": "5.10.0-13-amd64",
    "supervisor": "2022.05.0",
    "host_os": "Debian GNU/Linux 11 (bullseye)",
    "docker_version": "20.10.15",
    "chassis": "laptop",
    "run_as_root": true
  },
  "custom_components": {
    "blitzortung": {
      "version": "1.0.1",
      "requirements": [
        "paho-mqtt>=1.5.0"
      ]
    },
    "nodered": {
      "version": "1.0.8",
      "requirements": []
    },
    "fullykiosk": {
      "version": "1.0.1",
      "requirements": [
        "python-fullykiosk==0.0.11"
      ]
    },
    "powercalc": {
      "version": "v0.19.15",
      "requirements": [
        "numpy>=1.21.1"
      ]
    },
    "adaptive_lighting": {
      "version": "1.0.14",
      "requirements": []
    },
    "hacs": {
      "version": "1.24.5",
      "requirements": [
        "aiogithubapi>=21.11.0"
      ]
    },
    "deebot": {
      "version": "1.3.0",
      "requirements": [
        "deebot-client==1.3.0",
        "numpy>=1.21.2"
      ]
    },
    "nws_alerts": {
      "version": "2.4",
      "requirements": []
    },
    "alexa_media": {
      "version": "3.11.3",
      "requirements": [
        "alexapy==1.25.5",
        "packaging>=20.3",
        "wrapt>=1.12.1"
      ]
    },
    "alarmo": {
      "version": "v1.9.0",
      "requirements": []
    },
    "tryfi": {
      "version": "0.0.12",
      "requirements": [
        "pytryfi>=0.0.14.1"
      ]
    },
    "samsungtv_encrypted": {
      "version": "2022.3.1",
      "requirements": [
        "wakeonlan>=1.1.6",
        "beautifulsoup4>=4.6.0",
        "netdisco>=2.8.3"
      ]
    },
    "garbage_collection": {
      "version": "4.7.3",
      "requirements": [
        "python-dateutil>=2.8.2"
      ]
    },
    "dreamscreen": {
      "version": "2020.8.5",
      "requirements": [
        "PyDreamScreen>=0.0.14"
      ]
    },
    "emscrss": {
      "version": "1.1",
      "requirements": [
        "georss_emsc_csem_earthquakes_client==0.3"
      ]
    }
  },
  "integration_manifest": {
    "domain": "zha",
    "name": "Zigbee Home Automation",
    "config_flow": true,
    "documentation": "https://www.home-assistant.io/integrations/zha",
    "requirements": [
      "bellows==0.29.0",
      "pyserial==3.5",
      "pyserial-asyncio==0.6",
      "zha-quirks==0.0.73",
      "zigpy-deconz==0.16.0",
      "zigpy==0.45.1",
      "zigpy-xbee==0.14.0",
      "zigpy-zigate==0.7.4",
      "zigpy-znp==0.7.0"
    ],
    "usb": [
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*2652*",
        "known_devices": [
          "slae.sh cc2652rb stick"
        ]
      },
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*sonoff*plus*",
        "known_devices": [
          "sonoff zigbee dongle plus"
        ]
      },
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*tubeszb*",
        "known_devices": [
          "TubesZB Coordinator"
        ]
      },
      {
        "vid": "1A86",
        "pid": "7523",
        "description": "*tubeszb*",
        "known_devices": [
          "TubesZB Coordinator"
        ]
      },
      {
        "vid": "1A86",
        "pid": "7523",
        "description": "*zigstar*",
        "known_devices": [
          "ZigStar Coordinators"
        ]
      },
      {
        "vid": "1CF1",
        "pid": "0030",
        "description": "*conbee*",
        "known_devices": [
          "Conbee II"
        ]
      },
      {
        "vid": "10C4",
        "pid": "8A2A",
        "description": "*zigbee*",
        "known_devices": [
          "Nortek HUSBZB-1"
        ]
      },
      {
        "vid": "10C4",
        "pid": "8B34",
        "description": "*bv 2010/10*",
        "known_devices": [
          "Bitron Video AV2010/10"
        ]
      }
    ],
    "codeowners": [
      "@dmulcahey",
      "@adminiuga"
    ],
    "zeroconf": [
      {
        "type": "_esphomelib._tcp.local.",
        "name": "tube*"
      }
    ],
    "after_dependencies": [
      "usb",
      "zeroconf"
    ],
    "iot_class": "local_polling",
    "loggers": [
      "aiosqlite",
      "bellows",
      "crccheck",
      "pure_pcapy3",
      "zhaquirks",
      "zigpy",
      "zigpy_deconz",
      "zigpy_xbee",
      "zigpy_zigate",
      "zigpy_znp"
    ],
    "is_built_in": true
  },
  "data": {
    "ieee": "**REDACTED**",
    "nwk": 30150,
    "manufacturer": "Universal Electronics Inc",
    "model": "URC4460BC0-X-R",
    "name": "Universal Electronics Inc URC4460BC0-X-R",
    "quirk_applied": false,
    "quirk_class": "zigpy.device.Device",
    "manufacturer_code": 4335,
    "power_source": "Battery or Unknown",
    "lqi": 255,
    "rssi": -15,
    "last_seen": "2022-05-05T19:20:39",
    "available": true,
    "device_type": "EndDevice",
    "signature": {
      "node_descriptor": "NodeDescriptor(logical_type=<LogicalType.EndDevice: 2>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.Freq2400MHz: 8>, mac_capability_flags=<MACCapabilityFlags.AllocateAddress: 128>, manufacturer_code=4335, maximum_buffer_size=82, maximum_incoming_transfer_size=82, server_mask=0, maximum_outgoing_transfer_size=82, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=True, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=True, *is_full_function_device=False, *is_mains_powered=False, *is_receiver_on_when_idle=False, *is_router=False, *is_security_capable=False)",
      "endpoints": {
        "1": {
          "profile_id": 260,
          "device_type": "0x0402",
          "in_clusters": [
            "0x0000",
            "0x0001",
            "0x0003",
            "0x0020",
            "0x0402",
            "0x0500",
            "0x0b05"
          ],
          "out_clusters": [
            "0x0019"
          ]
        }
      }
    },
    "entities": [
      {
        "entity_id": "button.door_bathroom_kids_identify",
        "name": "Universal Electronics Inc URC4460BC0-X-R"
      },
      {
        "entity_id": "sensor.door_bathroom_kids_power",
        "name": "Universal Electronics Inc URC4460BC0-X-R"
      },
      {
        "entity_id": "sensor.door_bathroom_kids_temperature",
        "name": "Universal Electronics Inc URC4460BC0-X-R"
      },
      {
        "entity_id": "binary_sensor.door_bathroom_contact",
        "name": "Universal Electronics Inc URC4460BC0-X-R"
      }
    ],
    "neighbors": [],
    "endpoint_names": [
      {
        "name": "IAS_ZONE"
      }
    ],
    "user_given_name": "Door - Bathroom - Kids",
    "device_reg_id": "9e3b1d0c9094f6596a515ea63b721a17",
    "area_id": null
  }
}

Additional context Add any other context or screenshots about the feature request here.

[HVR88]

So, I just checked and battery percentage is working now. Go figure. I just left the system since I posted above (about two hours ago) and now it’s reporting a value. Weird.

While previously testing, there were no errors that I’ve found. And to get this sensor working I had to add it a couple of times before it was stable and open/close worked reliably. Restarted a few times over a period of some 20 minutes after adding the quirk and no joy.

[MattWestb]

Some device is not getting the reporting configured OK then paring and need being reconfigured from the device card (wake up sleepers then doing it) like all IKEA controllers. If it working OK letting it and if problem try reconfig.
