[Device Support Request] Aubees Tuya Temperature and Humidity LCD sensor

This is a device request for the Aubees Tuya Temperature and Humidy LCD sensor from Ali: https://de.aliexpress.com/item/1005004059457595.html?spm=a2g0o.productlist.0.0.5b6f72c4OnhJgH&algo_pvid=46b8c263-c6f4-4865-a96e-652f9ca89e9d&algo_exp_id=46b8c263-c6f4-4865-a96e-652f9ca89e9d-6&pdp_ext_f={"sku_id"%3A"12000027896131186"}&pdp_npi=2%40dis!CHF!14.1!5.43!!!!!%402101e9d516592967255884625e5a92!12000027896131186!sea

Describe the solution you’d like So far the device is detected within ZHA. I can see thee entities: Temperature, Humidity and Battery. But all values are 0.0. It would be nice to see the real numbers. I have experimented with clusters, but could not get anything out. Does anybody have a solution?

Diagnostic information

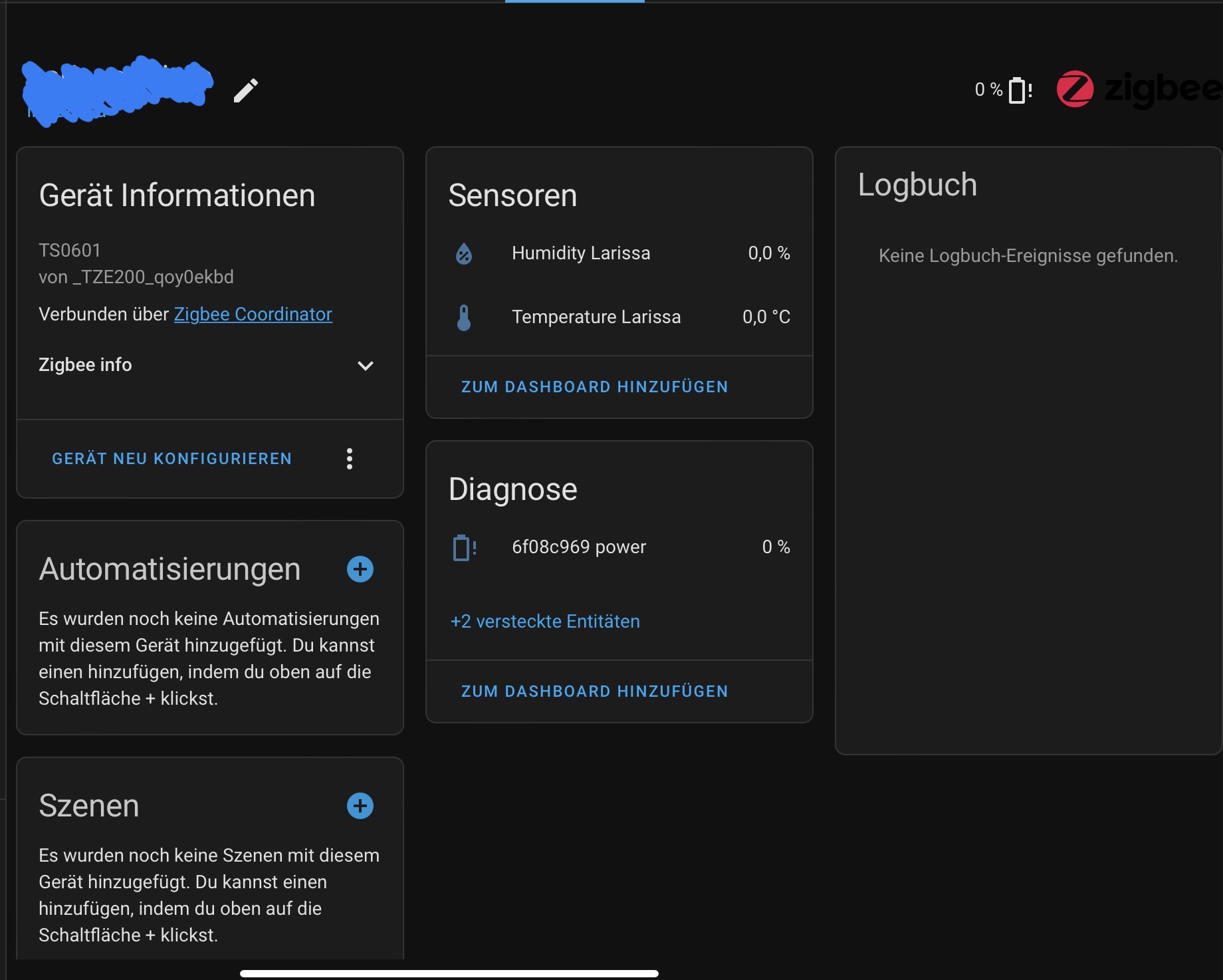

Although the device is detected I get the following message in the log of ZHA during pairing.
![8B952D21-DED6-4357-B225-AFFEFD8D654C](https://user-images.githubusercontent.com/13441102/182043218-90e3ff87-bc99-498d-b840-aa56fc18bf3d.jpeg)

Ignoring message (b'09070200190102000400000111') on cluster 61184: unknown endpoint or cluster id: 'No cluster ID 0xef00 on (a4:c1:38:bd:69:c9:08:6f, 1)'

Additional logs

Paste any additional debug logs here.
Don't remove the extra line breaks outside the ``` marks.

Additional context Add any other context or screenshots about the feature request here.

[hemy81]

@javicalle I attached the quirk I am using atm:

"""Tuya temp and humidity sensor with e-ink screen."""

from typing import Dict

from zigpy.profiles import zha
from zigpy.quirks import CustomDevice
from zigpy.zcl.clusters.general import Basic, Groups, Ota, Scenes, Time
from zigpy.zcl.clusters.measurement import RelativeHumidity, TemperatureMeasurement

from zhaquirks.const import (
    DEVICE_TYPE,
    ENDPOINTS,
    INPUT_CLUSTERS,
    MODELS_INFO,
    OUTPUT_CLUSTERS,
    PROFILE_ID,
    SKIP_CONFIGURATION,
)
from zhaquirks.tuya import TuyaLocalCluster, TuyaPowerConfigurationCluster2AAA
from zhaquirks.tuya.mcu import DPToAttributeMapping, TuyaDPType, TuyaMCUCluster

# NOTES:
# The data comes in as a string on cluster, if there is nothing set up you may see these lines in the logs:
# Unknown message (b'19830100a40102000400000118') on cluster 61184: unknown endpoint or cluster id: 'No cluster ID 0xef00 on (a4:c1:38:d0:18:8b:64:aa, 1)'
#                                          28.0 degrees
# Unknown message (b'19840100a5020200040000022c') on cluster 61184: unknown endpoint or cluster id: 'No cluster ID 0xef00 on (a4:c1:38:d0:18:8b:64:aa, 1)'
#                                          55.6% humid
# Unknown message (b'19850100a60402000400000064') on cluster 61184: unknown endpoint or cluster id: 'No cluster ID 0xef00 on (a4:c1:38:d0:18:8b:64:aa, 1)'
#                                          100% battery


class TuyaTemperatureMeasurement(TemperatureMeasurement, TuyaLocalCluster):
    """Tuya local TemperatureMeasurement cluster."""


class TuyaRelativeHumidity(RelativeHumidity, TuyaLocalCluster):
    """Tuya local RelativeHumidity cluster."""


class TemperatureHumidityManufCluster(TuyaMCUCluster):
    """Tuya Manufacturer Cluster with Temperature and Humidity data points."""

    dp_to_attribute: Dict[int, DPToAttributeMapping] = {
        1: DPToAttributeMapping(
            TuyaTemperatureMeasurement.ep_attribute,
            "measured_value",
            dp_type=TuyaDPType.VALUE,
            converter=lambda x: x * 10,  # decidegree to centidegree
        ),
        2: DPToAttributeMapping(
            TuyaRelativeHumidity.ep_attribute,
            "measured_value",
            dp_type=TuyaDPType.VALUE,
            converter=lambda x: x * 100,  # decipercent to percent
        ),
        4: DPToAttributeMapping(
            TuyaPowerConfigurationCluster2AAA.ep_attribute,
            "battery_percentage_remaining",
            dp_type=TuyaDPType.VALUE,
            converter=lambda x: x * 2,  # double reported percentage
        ),
    }

    data_point_handlers = {
        1: "_dp_2_attr_update",
        2: "_dp_2_attr_update",
        4: "_dp_2_attr_update",
    }


class TuyaTempHumiditySensor(CustomDevice):
    """Custom device representing tuya temp and humidity sensor with e-ink screen."""

    signature = {
        # <SimpleDescriptor endpoint=1, profile=260, device_type=81
        # device_version=1
        # input_clusters=[4, 5, 61184, 0]
        # output_clusters=[25, 10]>
        MODELS_INFO: [("_TZE200_bjawzodf", "TS0601")],
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.SMART_PLUG,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TemperatureHumidityManufCluster.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id, Time.cluster_id],
            }
        },
    }

    replacement = {
        SKIP_CONFIGURATION: True,
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.TEMPERATURE_SENSOR,
                INPUT_CLUSTERS: [
                    TemperatureHumidityManufCluster,  # Single bus for temp, humidity, and battery
                    TuyaTemperatureMeasurement,
                    TuyaRelativeHumidity,
                    TuyaPowerConfigurationCluster2AAA,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id, Time.cluster_id],
            }
        },
    }

class TuyaTempHumiditySensor_Square(CustomDevice):
    """Custom device representing tuya temp and humidity sensor with e-ink screen."""

    signature = {
        # <SimpleDescriptor endpoint=1, profile=260, device_type=0x0302
        # input_clusters=[0x0000, 0x0001, 0x0402, 0x0405]
        # output_clusters=[0x000a, 0x0019]>
        MODELS_INFO: [("_TZE200_qoy0ekbd", "TS0601")],
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.TEMPERATURE_SENSOR,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    TuyaPowerConfigurationCluster2AAA.cluster_id,
                    TemperatureMeasurement.cluster_id,
                    RelativeHumidity.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id, Time.cluster_id],
            }
        },
    }

    replacement = {
        SKIP_CONFIGURATION: True,
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.TEMPERATURE_SENSOR,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    TuyaPowerConfigurationCluster2AAA,
                    TuyaTemperatureMeasurement,
                    TuyaRelativeHumidity,
                    TemperatureHumidityManufCluster,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id, Time.cluster_id],
            }
        },
    }

[ernstmosch]

Hi Javicalle,

i dont feel very comfortable in submitting this code on github, because i somehown have to merge the two devices “_TZE200_bjawzodf” (from original source) and “_TZE200_qoy0ekbd” (mine) in the quirk.

Even after locally testing i wouldnt know if i ruined the other device.

If you woul finish the pull request i woul feel much better.

kind regarde, Ernsti
