[Device Support Request] Freint Electricity Meter Interface (Develco ZHEMI101)
See original GitHub issueIs your feature request related to a problem? Please describe. I believe that the Freint Electricity Meter Interface (Develco ZHEMI101) is already somewhat supported, meaning I can add it to my Home Assistant via ZHA. However, not all sensors and functionality is present…
Describe the solution you’d like
-
It appears that the battery sensor is supported but does get get exposed via ZHA. According to the manual, there is a status attribute on the metering cluster for reporting “Low battery”.
-
The device supports changing the
PulseConfigurationfrom the default1000to something else such as3200. However, changing this in Home Assistant does not save and the default ```1000` remains. -
Upon adding the device, it exposes a
Devicetemperaturesensor. There is no features to allow the monitoring of the device.
Device signature
{
"node_descriptor": "NodeDescriptor(logical_type=<LogicalType.EndDevice: 2>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.0: 0>, mac_capability_flags=<MACCapabilityFlags.NONE: 0>, manufacturer_code=0, maximum_buffer_size=0, maximum_incoming_transfer_size=0, server_mask=0, maximum_outgoing_transfer_size=0, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=False, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=True, *is_full_function_device=False, *is_mains_powered=False, *is_receiver_on_when_idle=False, *is_router=False, *is_security_capable=False)",
"endpoints": {
"1": {
"profile_id": 49353,
"device_type": "0x0001",
"in_clusters": [
"0x0002",
"0x0003",
"0x0005"
],
"out_clusters": [
"0x0001"
]
},
"2": {
"profile_id": 260,
"device_type": "0x0007",
"in_clusters": [
"0x0000",
"0x0003",
"0x0702"
],
"out_clusters": [
"0x000a"
]
}
},
"manufacturer": "Develco",
"model": "ZHEMI101",
"class": "zigpy.device.Device"
} ``` marks.
Diagnostic information
{
"home_assistant": {
"installation_type": "Home Assistant Container",
"version": "2022.8.0",
"dev": false,
"hassio": false,
"virtualenv": false,
"python_version": "3.10.5",
"docker": true,
"arch": "x86_64",
"timezone": "Europe/London",
"os_name": "Linux",
"os_version": "5.10.0-16-amd64",
"run_as_root": true
},
"custom_components": {
"eufy_vacuum": {
"version": "1.0.4",
"requirements": [
"cryptography"
]
},
"adaptive_lighting": {
"version": "1.0.14",
"requirements": []
},
"auth_header": {
"version": "1.4",
"requirements": []
},
"dyson_local": {
"version": "0.16.4-4",
"requirements": [
"libdyson==0.8.11"
]
}
},
"integration_manifest": {
"domain": "zha",
"name": "Zigbee Home Automation",
"config_flow": true,
"documentation": "https://www.home-assistant.io/integrations/zha",
"requirements": [
"bellows==0.31.2",
"pyserial==3.5",
"pyserial-asyncio==0.6",
"zha-quirks==0.0.78",
"zigpy-deconz==0.18.0",
"zigpy==0.48.0",
"zigpy-xbee==0.15.0",
"zigpy-zigate==0.9.0",
"zigpy-znp==0.8.1"
],
"usb": [
{
"vid": "10C4",
"pid": "EA60",
"description": "*2652*",
"known_devices": [
"slae.sh cc2652rb stick"
]
},
{
"vid": "10C4",
"pid": "EA60",
"description": "*sonoff*plus*",
"known_devices": [
"sonoff zigbee dongle plus"
]
},
{
"vid": "10C4",
"pid": "EA60",
"description": "*tubeszb*",
"known_devices": [
"TubesZB Coordinator"
]
},
{
"vid": "1A86",
"pid": "7523",
"description": "*tubeszb*",
"known_devices": [
"TubesZB Coordinator"
]
},
{
"vid": "1A86",
"pid": "7523",
"description": "*zigstar*",
"known_devices": [
"ZigStar Coordinators"
]
},
{
"vid": "1CF1",
"pid": "0030",
"description": "*conbee*",
"known_devices": [
"Conbee II"
]
},
{
"vid": "10C4",
"pid": "8A2A",
"description": "*zigbee*",
"known_devices": [
"Nortek HUSBZB-1"
]
},
{
"vid": "0403",
"pid": "6015",
"description": "*zigate*",
"known_devices": [
"ZiGate+"
]
},
{
"vid": "10C4",
"pid": "EA60",
"description": "*zigate*",
"known_devices": [
"ZiGate"
]
},
{
"vid": "10C4",
"pid": "8B34",
"description": "*bv 2010/10*",
"known_devices": [
"Bitron Video AV2010/10"
]
}
],
"codeowners": [
"@dmulcahey",
"@adminiuga",
"@puddly"
],
"zeroconf": [
{
"type": "_esphomelib._tcp.local.",
"name": "tube*"
},
{
"type": "_zigate-zigbee-gateway._tcp.local.",
"name": "*zigate*"
}
],
"after_dependencies": [
"onboarding",
"usb",
"zeroconf"
],
"iot_class": "local_polling",
"loggers": [
"aiosqlite",
"bellows",
"crccheck",
"pure_pcapy3",
"zhaquirks",
"zigpy",
"zigpy_deconz",
"zigpy_xbee",
"zigpy_zigate",
"zigpy_znp"
],
"is_built_in": true
},
"data": {
"ieee": "**REDACTED**",
"nwk": 37751,
"manufacturer": "Develco",
"model": "ZHEMI101",
"name": "Develco ZHEMI101",
"quirk_applied": false,
"quirk_class": "zigpy.device.Device",
"manufacturer_code": 0,
"power_source": "Battery or Unknown",
"lqi": 255,
"rssi": -49,
"last_seen": "2022-08-04T20:46:32",
"available": true,
"device_type": "EndDevice",
"signature": {
"node_descriptor": "NodeDescriptor(logical_type=<LogicalType.EndDevice: 2>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.0: 0>, mac_capability_flags=<MACCapabilityFlags.NONE: 0>, manufacturer_code=0, maximum_buffer_size=0, maximum_incoming_transfer_size=0, server_mask=0, maximum_outgoing_transfer_size=0, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=False, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=True, *is_full_function_device=False, *is_mains_powered=False, *is_receiver_on_when_idle=False, *is_router=False, *is_security_capable=False)",
"endpoints": {
"1": {
"profile_id": 49353,
"device_type": "0x0001",
"in_clusters": [
"0x0002",
"0x0003",
"0x0005"
],
"out_clusters": [
"0x0001"
]
},
"2": {
"profile_id": 260,
"device_type": "0x0007",
"in_clusters": [
"0x0000",
"0x0003",
"0x0702"
],
"out_clusters": [
"0x000a"
]
}
}
},
"active_coordinator": false,
"entities": [
{
"entity_id": "sensor.develco_zhemi101_smartenergymetering",
"name": "Develco ZHEMI101"
},
{
"entity_id": "sensor.develco_zhemi101_smartenergysummation",
"name": "Develco ZHEMI101"
}
],
"neighbors": [],
"endpoint_names": [
{
"name": "COMBINED_INTERFACE"
},
{
"name": "unknown 1 device_type of 0xc0c9 profile id"
}
],
"user_given_name": null,
"device_reg_id": "6a43a27cb395251a11ce4663ac33c030",
"area_id": "cupboard",
"cluster_details": {
"2": {
"device_type": {
"name": "COMBINED_INTERFACE",
"id": 7
},
"profile_id": 260,
"in_clusters": {
"0x0000": {
"endpoint_attribute": "basic",
"attributes": {
"0x0004": {
"attribute_name": "manufacturer",
"value": "Develco"
},
"0x0005": {
"attribute_name": "model",
"value": "ZHEMI101"
}
},
"unsupported_attributes": {}
},
"0x0003": {
"endpoint_attribute": "identify",
"attributes": {},
"unsupported_attributes": {}
},
"0x0702": {
"endpoint_attribute": "smartenergy_metering",
"attributes": {
"0x0000": {
"attribute_name": "current_summ_delivered",
"value": 0
},
"0x0100": {
"attribute_name": "current_tier1_summ_delivered",
"value": 281474976710655
},
"0x0102": {
"attribute_name": "current_tier2_summ_delivered",
"value": 281474976710655
},
"0x0200": {
"attribute_name": "status",
"value": 0
},
"0x0300": {
"attribute_name": "unit_of_measure",
"value": 0
},
"0x0301": {
"attribute_name": "multiplier",
"value": 1
},
"0x0302": {
"attribute_name": "divisor",
"value": 1000
},
"0x0303": {
"attribute_name": "summation_formatting",
"value": 251
},
"0x0304": {
"attribute_name": "demand_formatting",
"value": 251
},
"0x0306": {
"attribute_name": "metering_device_type",
"value": 0
},
"0x0400": {
"attribute_name": "instantaneous_demand",
"value": 0
}
},
"unsupported_attributes": {}
}
},
"out_clusters": {
"0x000a": {
"endpoint_attribute": "time",
"attributes": {},
"unsupported_attributes": {}
}
}
},
"1": {
"device_type": {
"name": "unknown",
"id": 1
},
"profile_id": 49353,
"in_clusters": {
"0x0002": {
"endpoint_attribute": "device_temperature",
"attributes": {},
"unsupported_attributes": {}
},
"0x0003": {
"endpoint_attribute": "identify",
"attributes": {},
"unsupported_attributes": {}
},
"0x0005": {
"endpoint_attribute": "scenes",
"attributes": {},
"unsupported_attributes": {}
}
},
"out_clusters": {
"0x0001": {
"endpoint_attribute": "power",
"attributes": {},
"unsupported_attributes": {}
}
}
}
}
}
}
Additional context
Manufacturer Product Page: https://www.develcoproducts.com/products/meter-interfaces/external-meter-interface/
Technical manual: https://www.develcoproducts.com/media/1782/zhemi101-technical-manual-external-meter-interface.pdf
Extracts from Manual

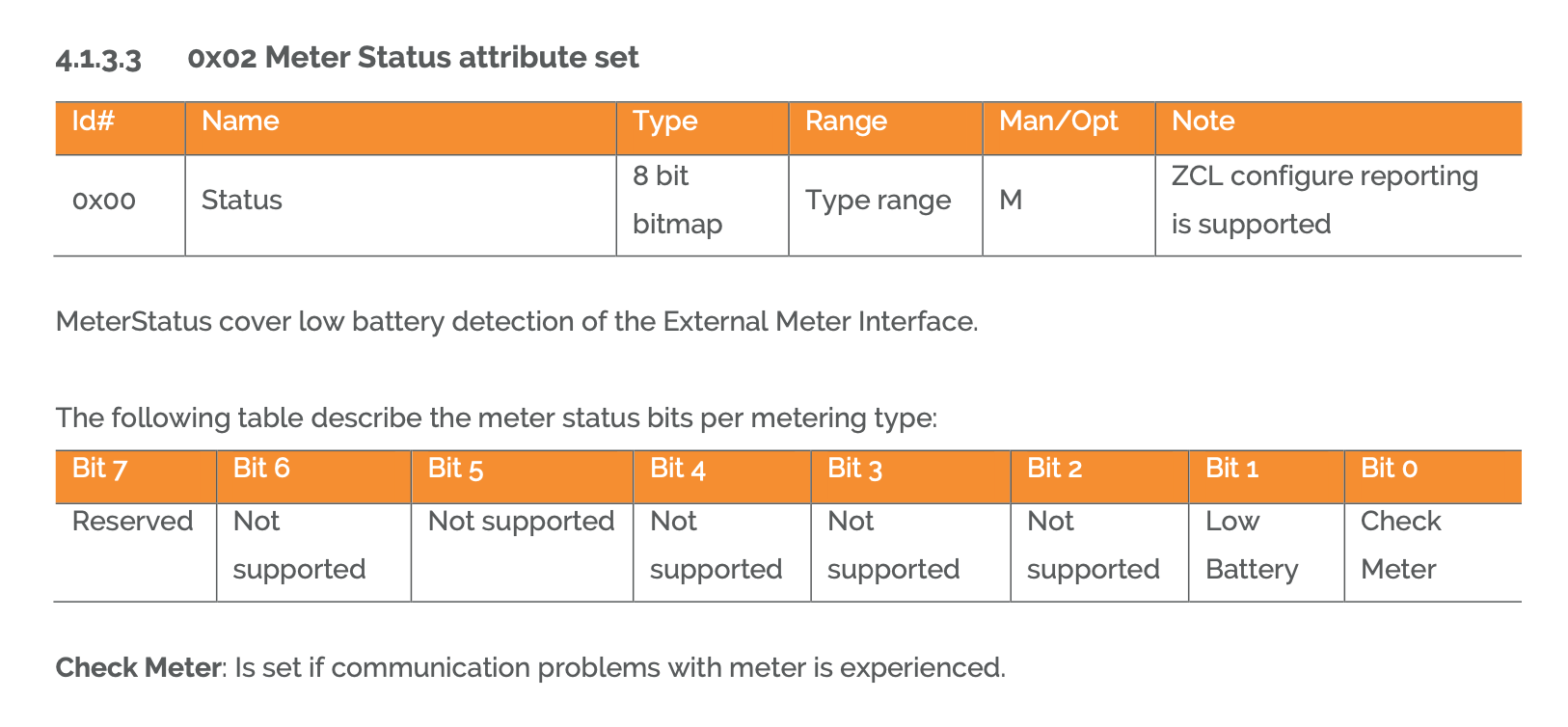

Battery Information

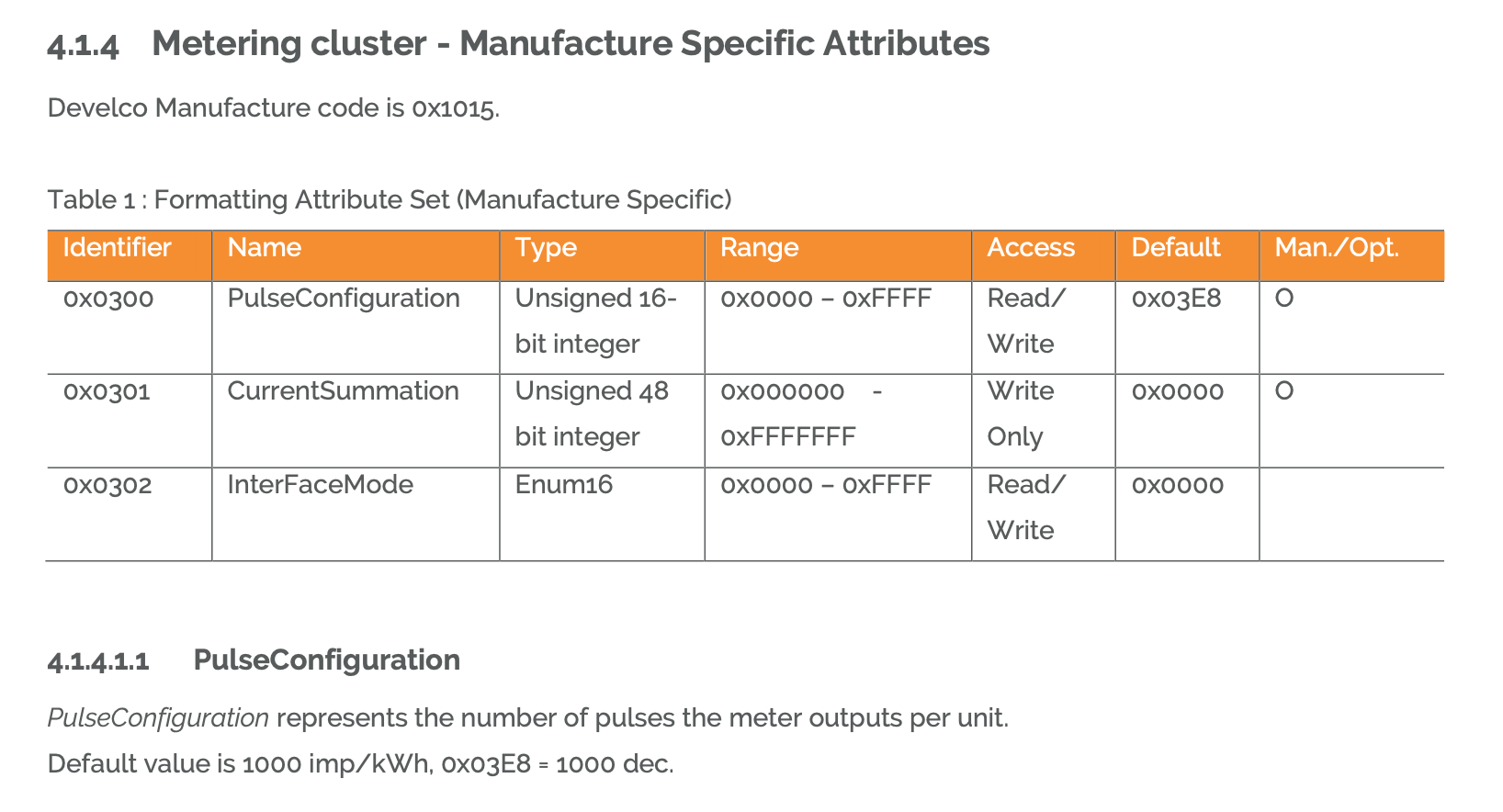

Pulse Confirmation Information:

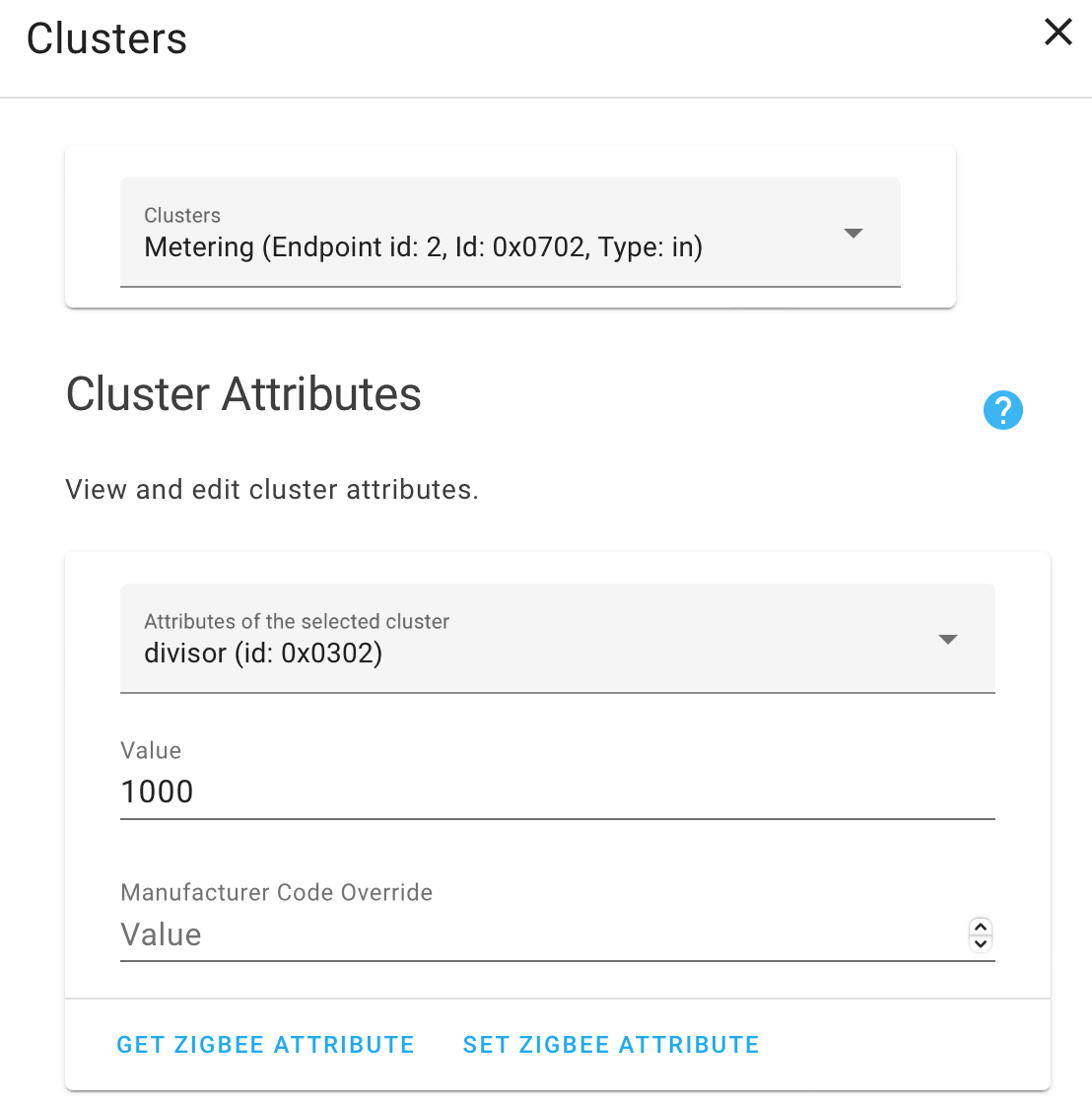

Pulse Confirmation in Home Assistant
This does not save and the default remains present

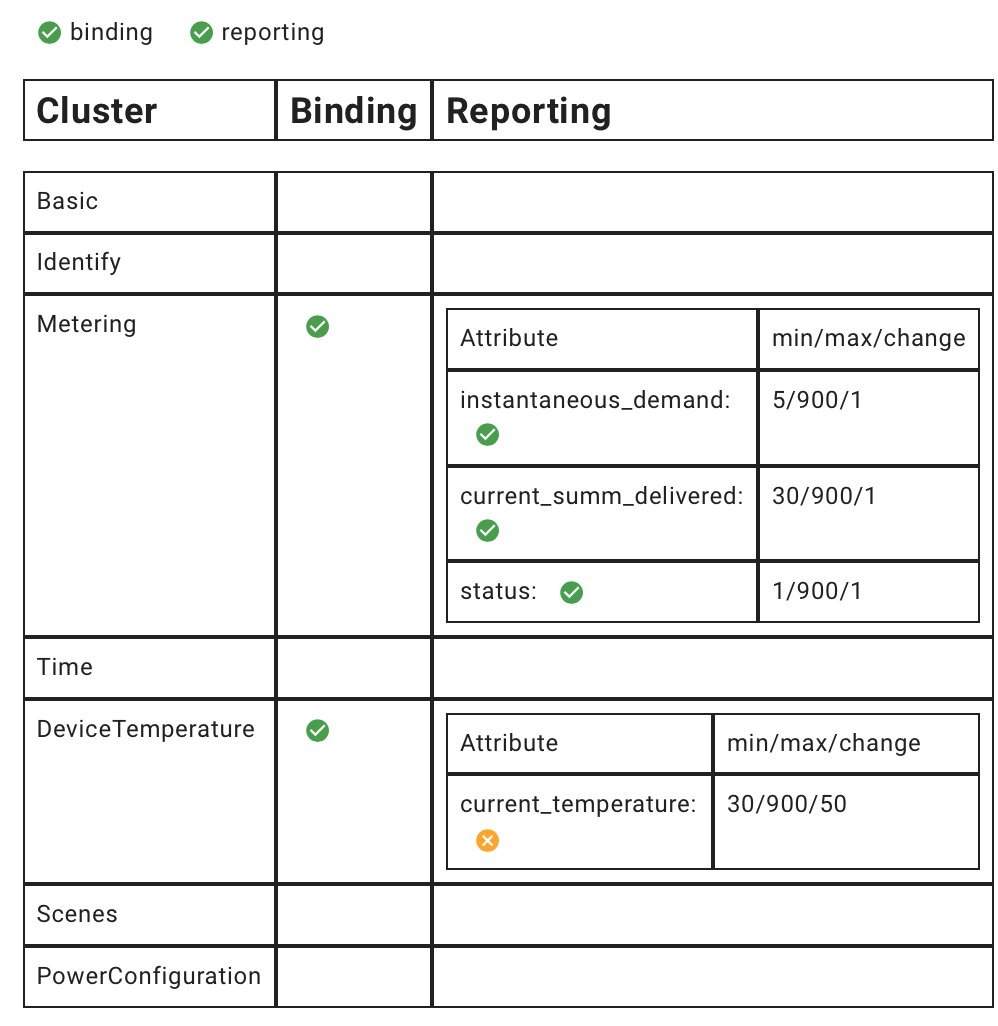

HA Reconfig
Other info
I saw zigbee2mqtt added support recently https://github.com/Koenkk/zigbee2mqtt/issues/8638
Issue Analytics
- State:
- Created a year ago
- Comments:5
Top Results From Across the Web
[Device Support Request] Develco Frient ZHEMI101 Electricity ...
[Device Support Request] Develco Frient ZHEMI101 Electricity meter reader #949. Closed. KieranDrain opened this issue on Jul 7, ...
Read more >Freint Electricity Meter Interface (Develco ZHEMI101) - Zigbee
[Device Support Request] Develco Frient ZHEMI101 Electricity meter reader. opened 10:44PM - 07 Jul 21 UTC. closed 09:14PM - 08 Oct 21 UTC....
Read more >Electricity Meter Interface - smart Zigbee meter for ... - frient
Someone who wants to help you lower your consumption and save money. Now that's a frient! Lower your electricity bill. Mount the friently...
Read more >External Meter Interface - Real-time measurement
The External Meter Interface equips meters with wireless communication, enabling your customers to extract data from power, gas, water or heating meters.
Read more >Bountysource
[Device Support Request] Develco Frient ZHEMI101 Electricity meter reader. ... Coming soon: A brand new website interface for an even better experience!
Read more >
Top Related Medium Post
No results found
Top Related StackOverflow Question
No results found
Troubleshoot Live Code
Lightrun enables developers to add logs, metrics and snapshots to live code - no restarts or redeploys required.
Start Free
Top Related Reddit Thread
No results found
Top Related Hackernoon Post
No results found
Top Related Tweet
No results found
Top Related Dev.to Post
No results found
Top Related Hashnode Post
No results found
I hope these debug logs help.
I changed updated the value from
1000to3200using manufacture code4117at 20:52pm and copied all the logs since.Extract from Debug Logs
@javicalle were these logs okay? Happy to pull others if needed.
