[Device Support Request] TS130F - _TZ3000_kmsbwdol

See original GitHub issue

Is your feature request related to a problem? Please describe. This device gets recognized and connected by ZHA out of the box. It’s a switch for two shutters/curtains/covers with physical buttons (up, pause, down) for both outputs of them However, the percentages are the wrong way around (so when it’s closed it says its 0% and when it’s open it says it’s 100%), and I’m not able to calibrate properly.

I’ve been trying to fix it myself, but I have never done this before and I’m probably doing it completely wrong!

There are also two toggles which seem to do nothing And the rssi is not shown either.

Product that I purchased: https://nl.aliexpress.com/item/1005003308586552.html?srcSns=sns_Copy&spreadType=socialShare&bizType=ProductDetail&social_params=60161453943&aff_fcid=b68f242928344655ae91979f35502ba9-1653409970693-02737-_u76szN&tt=MG&aff_fsk=_u76szN&aff_platform=default&sk=_u76szN&aff_trace_key=b68f242928344655ae91979f35502ba9-1653409970693-02737-_u76szN&shareId=60161453943&businessType=ProductDetail&platform=AE&terminal_id=a4e2cde960db4c23a78d82206988e934&afSmartRedirect=y

Describe the solution you’d like A roller shutter that works properly would be nice!

Device signature
 {
  "node_descriptor": "NodeDescriptor(logical_type=<LogicalType.Router: 1>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.Freq2400MHz: 8>, mac_capability_flags=<MACCapabilityFlags.AllocateAddress|RxOnWhenIdle|MainsPowered|FullFunctionDevice: 142>, manufacturer_code=4417, maximum_buffer_size=66, maximum_incoming_transfer_size=66, server_mask=10752, maximum_outgoing_transfer_size=66, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=True, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=False, *is_full_function_device=True, *is_mains_powered=True, *is_receiver_on_when_idle=True, *is_router=True, *is_security_capable=False)",
  "endpoints": {
    "1": {
      "profile_id": 260,
      "device_type": "0x0202",
      "in_clusters": [
        "0x0000",
        "0x0004",
        "0x0005",
        "0x0006",
        "0x0102"
      ],
      "out_clusters": [
        "0x000a",
        "0x0019"
      ]
    },
    "2": {
      "profile_id": 260,
      "device_type": "0x0202",
      "in_clusters": [
        "0x0004",
        "0x0005",
        "0x0006",
        "0x0102"
      ],
      "out_clusters": []
    },
    "242": {
      "profile_id": 41440,
      "device_type": "0x0061",
      "in_clusters": [],
      "out_clusters": [
        "0x0021"
      ]
    }
  },
  "manufacturer": "_TZ3000_kmsbwdol",
  "model": "TS130F",
  "class": "zigpy.device.Device"
}
Diagnostic Information
{
  "home_assistant": {
    "installation_type": "Home Assistant OS",
    "version": "2022.5.5",
    "dev": false,
    "hassio": true,
    "virtualenv": false,
    "python_version": "3.9.9",
    "docker": true,
    "arch": "x86_64",
    "timezone": "Europe/Amsterdam",
    "os_name": "Linux",
    "os_version": "5.15.41",
    "supervisor": "2022.05.3",
    "host_os": "Home Assistant OS 8.1",
    "docker_version": "20.10.14",
    "chassis": "vm",
    "run_as_root": true
  },
  "custom_components": {
    "untappd": {
      "version": "0.1.6",
      "requirements": [
        "pyuntappd==0.0.5"
      ]
    },
    "google_home": {
      "version": "1.9.10",
      "requirements": [
        "glocaltokens==0.6.3",
        "google-api-python-client==2.38.0"
      ]
    },
    "hacs": {
      "version": "1.25.1",
      "requirements": [
        "aiogithubapi>=22.2.4"
      ]
    },
    "cryptoinfo": {
      "version": "0.0.10",
      "requirements": []
    },
    "yi_hack": {
      "version": "0.3.0",
      "requirements": []
    },
    "afvalinfo": {
      "version": "1.0.6",
      "requirements": [
        "Babel==2.8.0",
        "python-dateutil==2.8.1"
      ]
    },
    "dwains_dashboard": {
      "version": "3.1.1",
      "requirements": []
    },
    "fontawesome": {
      "version": "2.1.5",
      "requirements": []
    },
    "watchman": {
      "version": "0.5.1",
      "requirements": [
        "prettytable==3.0.0"
      ]
    },
    "webrtc": {
      "version": "v2.3.0",
      "requirements": []
    },
    "breaking_changes": {
      "version": "21.12.0",
      "requirements": [
        "pyhaversion>=21.3.0",
        "integrationhelper>=0.2.2",
        "awesomeversion"
      ]
    },
    "zha_toolkit": {
      "version": "v0.8.8",
      "requirements": []
    },
    "arris_dcx960": {
      "version": "1.2.0",
      "requirements": [
        "arris-dcx960==0.2.1"
      ]
    },
    "schedule_state": {
      "version": "0.13.3",
      "requirements": [
        "portion==2.2.0"
      ]
    },
    "spotcast": {
      "version": "v3.6.29",
      "requirements": [
        "spotify_token==1.0.0"
      ]
    },
    "localtuya": {
      "version": "3.2.1",
      "requirements": []
    }
  },
  "integration_manifest": {
    "domain": "zha",
    "name": "Zigbee Home Automation",
    "config_flow": true,
    "documentation": "https://www.home-assistant.io/integrations/zha",
    "requirements": [
      "bellows==0.29.0",
      "pyserial==3.5",
      "pyserial-asyncio==0.6",
      "zha-quirks==0.0.73",
      "zigpy-deconz==0.16.0",
      "zigpy==0.45.1",
      "zigpy-xbee==0.14.0",
      "zigpy-zigate==0.7.4",
      "zigpy-znp==0.7.0"
    ],
    "usb": [
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*2652*",
        "known_devices": [
          "slae.sh cc2652rb stick"
        ]
      },
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*sonoff*plus*",
        "known_devices": [
          "sonoff zigbee dongle plus"
        ]
      },
      {
        "vid": "10C4",
        "pid": "EA60",
        "description": "*tubeszb*",
        "known_devices": [
          "TubesZB Coordinator"
        ]
      },
      {
        "vid": "1A86",
        "pid": "7523",
        "description": "*tubeszb*",
        "known_devices": [
          "TubesZB Coordinator"
        ]
      },
      {
        "vid": "1A86",
        "pid": "7523",
        "description": "*zigstar*",
        "known_devices": [
          "ZigStar Coordinators"
        ]
      },
      {
        "vid": "1CF1",
        "pid": "0030",
        "description": "*conbee*",
        "known_devices": [
          "Conbee II"
        ]
      },
      {
        "vid": "10C4",
        "pid": "8A2A",
        "description": "*zigbee*",
        "known_devices": [
          "Nortek HUSBZB-1"
        ]
      },
      {
        "vid": "10C4",
        "pid": "8B34",
        "description": "*bv 2010/10*",
        "known_devices": [
          "Bitron Video AV2010/10"
        ]
      }
    ],
    "codeowners": [
      "@dmulcahey",
      "@adminiuga"
    ],
    "zeroconf": [
      {
        "type": "_esphomelib._tcp.local.",
        "name": "tube*"
      }
    ],
    "after_dependencies": [
      "usb",
      "zeroconf"
    ],
    "iot_class": "local_polling",
    "loggers": [
      "aiosqlite",
      "bellows",
      "crccheck",
      "pure_pcapy3",
      "zhaquirks",
      "zigpy",
      "zigpy_deconz",
      "zigpy_xbee",
      "zigpy_zigate",
      "zigpy_znp"
    ],
    "is_built_in": true
  },
  "data": {
    "ieee": "**REDACTED**",
    "nwk": 37422,
    "manufacturer": "_TZ3000_kmsbwdol",
    "model": "TS130F",
    "name": "_TZ3000_kmsbwdol TS130F",
    "quirk_applied": false,
    "quirk_class": "zigpy.device.Device",
    "manufacturer_code": 4417,
    "power_source": "Mains",
    "lqi": 105,
    "rssi": null,
    "last_seen": "2022-05-24T17:33:54",
    "available": true,
    "device_type": "Router",
    "signature": {
      "node_descriptor": "NodeDescriptor(logical_type=<LogicalType.Router: 1>, complex_descriptor_available=0, user_descriptor_available=0, reserved=0, aps_flags=0, frequency_band=<FrequencyBand.Freq2400MHz: 8>, mac_capability_flags=<MACCapabilityFlags.AllocateAddress|RxOnWhenIdle|MainsPowered|FullFunctionDevice: 142>, manufacturer_code=4417, maximum_buffer_size=66, maximum_incoming_transfer_size=66, server_mask=10752, maximum_outgoing_transfer_size=66, descriptor_capability_field=<DescriptorCapability.NONE: 0>, *allocate_address=True, *is_alternate_pan_coordinator=False, *is_coordinator=False, *is_end_device=False, *is_full_function_device=True, *is_mains_powered=True, *is_receiver_on_when_idle=True, *is_router=True, *is_security_capable=False)",
      "endpoints": {
        "1": {
          "profile_id": 260,
          "device_type": "0x0202",
          "in_clusters": [
            "0x0000",
            "0x0004",
            "0x0005",
            "0x0006",
            "0x0102"
          ],
          "out_clusters": [
            "0x000a",
            "0x0019"
          ]
        },
        "2": {
          "profile_id": 260,
          "device_type": "0x0202",
          "in_clusters": [
            "0x0004",
            "0x0005",
            "0x0006",
            "0x0102"
          ],
          "out_clusters": []
        },
        "242": {
          "profile_id": 41440,
          "device_type": "0x0061",
          "in_clusters": [],
          "out_clusters": [
            "0x0021"
          ]
        }
      }
    },
    "entities": [
      {
        "entity_id": "cover.rolluik_masterbedroom_links",
        "name": "_TZ3000_kmsbwdol TS130F"
      },
      {
        "entity_id": "cover.rolluik_masterbedroom_rechts",
        "name": "_TZ3000_kmsbwdol TS130F"
      },
      {
        "entity_id": "sensor.rolluik_masterbedroom_basic_rssi",
        "name": "_TZ3000_kmsbwdol TS130F"
      },
      {
        "entity_id": "sensor.rolluik_masterbedroom_basic_lqi",
        "name": "_TZ3000_kmsbwdol TS130F"
      },
      {
        "entity_id": "switch.rolluik_masterbedroom_on_off",
        "name": "_TZ3000_kmsbwdol TS130F"
      },
      {
        "entity_id": "switch.rolluik_masterbedroom_on_off_2",
        "name": "_TZ3000_kmsbwdol TS130F"
      }
    ],
    "neighbors": [],
    "endpoint_names": [
      {
        "name": "WINDOW_COVERING_DEVICE"
      },
      {


        "name": "WINDOW_COVERING_DEVICE"
      },
      {
        "name": "unknown 97 device_type of 0xa1e0 profile id"
      }
    ],
    "user_given_name": "Rolluiken Master Bedroom",
    "device_reg_id": "e9c111e1ea39aa847286fb5476f54e7e",
    "area_id": "c6c9153cd0da4c2996d3b14d43157310"
  }
}

``` </details>

**Additional context**
![2022-05-24_18-34-51](https://user-images.githubusercontent.com/36342485/170087901-95b53ebe-689f-4355-a539-6afdf73ff7cc.png)
![2022-05-24_18-36-45](https://user-images.githubusercontent.com/36342485/170087908-889defaa-c733-4f74-b2a9-4348ce45d338.png)

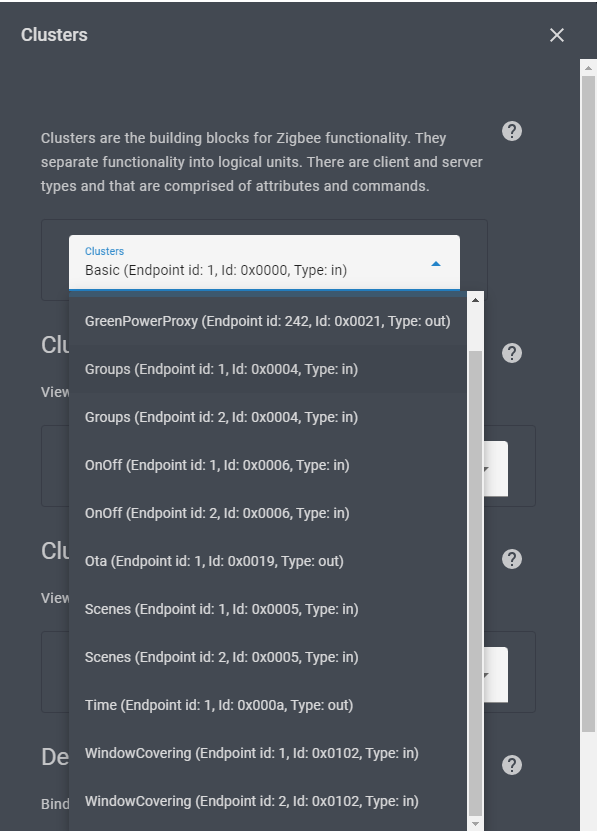

![2022-05-24_15-49-18](https://user-images.githubusercontent.com/36342485/170087910-c2bc0abd-fd9a-4056-9d27-e672482547ab.png)

Issue Analytics

  • State:closed
  • Created a year ago
  • Comments:6

github_iconTop GitHub Comments

1reaction
javicallecommented, May 24, 2022

Thanks for fixing the format. I’ve updated the code because I had forgotten about the new endpoint in the replacement part.

Goodnight 😴

1reaction
Oulewappeurcommented, May 24, 2022

Your device doesn’t match any existing quirk because of double switch. Existing quirks already fix the position issue.

There is a custom quirk that I think that can match your device:

ts130f.py
"""Device handler for loratap TS130F smart curtain switch."""
from zigpy.profiles import zha
from zigpy.quirks import CustomCluster, CustomDevice
import zigpy.types as t
from zigpy.zcl.clusters.closures import WindowCovering
from zigpy.zcl.clusters.general import (
    Basic,
    GreenPowerProxy,
    Groups,
    OnOff,
    Ota,
    Scenes,
    Time,
)

from zhaquirks.const import (
    DEVICE_TYPE,
    ENDPOINTS,
    INPUT_CLUSTERS,
    MODEL,
    OUTPUT_CLUSTERS,
    PROFILE_ID,
)
from zhaquirks.tuya import TuyaZBExternalSwitchTypeCluster

ATTR_CURRENT_POSITION_LIFT_PERCENTAGE = 0x0008
CMD_GO_TO_LIFT_PERCENTAGE = 0x0005


class TuyaWithBacklightOnOffCluster(CustomCluster):
    """TuyaSmartCurtainOnOffCluster: fire events corresponding to press type."""

    cluster_id = OnOff.cluster_id

    LIGHT_MODE_1 = {0x8001: 0}
    LIGHT_MODE_2 = {0x8001: 1}
    LIGHT_MODE_3 = {0x8001: 2}

    attributes = {0x8001: ("backlight_mode", t.enum8)}


class TuyaCoveringCluster(CustomCluster, WindowCovering):
    """TuyaSmartCurtainWindowCoveringCluster: Allow to setup Window covering tuya devices."""

    attributes = WindowCovering.attributes.copy()
    attributes.update({0xF000: ("tuya_moving_state", t.enum8)})
    attributes.update({0xF001: ("calibration", t.enum8)})
    attributes.update({0xF002: ("motor_reversal", t.enum8)})
    attributes.update({0xF003: ("calibration_time", t.uint16_t)})

    def _update_attribute(self, attrid, value):
        if attrid == ATTR_CURRENT_POSITION_LIFT_PERCENTAGE:
            # Invert the percentage value (cf https://github.com/dresden-elektronik/deconz-rest-plugin/issues/3757)
            value = 100 - value
        super()._update_attribute(attrid, value)

    async def command(
        self, command_id, *args, manufacturer=None, expect_reply=True, tsn=None
    ):
        """Override default command to invert percent lift value."""
        if command_id == CMD_GO_TO_LIFT_PERCENTAGE:
            percent = args[0]
            # Invert the percentage value (cf https://github.com/dresden-elektronik/deconz-rest-plugin/issues/3757)
            percent = 100 - percent
            v = (percent,)
            return await super().command(command_id, *v)
        return await super().command(
            command_id,
            *args,
            manufacturer=manufacturer,
            expect_reply=expect_reply,
            tsn=tsn
        )


class TuyaTS130FTI(CustomDevice):
    """Tuya smart curtain roller shutter Time In."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0, 4, 5, 6, 10, 0x0102], output_clusters=[25]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    Time.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    Time.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [Ota.cluster_id],
            },
        },
    }


class TuyaZemismartTS130F(CustomDevice):
    """Tuya ZemiSmart smart curtain roller shutter."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0x0000, 0x0004, 0x0005, 0x0006, 0x0102], output_clusters=[0x000a, 0x0019]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
        },
    }


class TuyaMoesDiyRf433TS130F(CustomDevice):
    """Moes Tuya ZigBee DIY RF433 Smart Curtain Switch Module."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0203, device_version=1, input_clusters=[0x0000, 0x0004, 0x0005, 0x0006, 0x0102], output_clusters=[0x000a, 0x0019]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_CONTROLLER,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_CONTROLLER,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
        },
    }


class TuyaTS130FTO(CustomDevice):
    """Tuya smart curtain roller shutter Time Out."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0, 4, 5, 6, 10, 0x0102], output_clusters=[25]))
        # This singnature is not correct is one copy of the first one and the cluster is not inline with the device.
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
        },
    }


class TuyaTS130GP(CustomDevice):
    """Tuya ZemiSmart smart curtain roller shutter with Green Power."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0, 4, 5, 6, 0x0102], output_clusters=[0x000a, 0x0019]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
            242: {
                # <SimpleDescriptor endpoint=242 profile=41440 device_type=97
                # input_clusters=[]
                # output_clusters=[33]
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
            242: {
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }


class TuyaTS130Double_GP(CustomDevice):
    """Tuya double smart curtain roller shutter with Green Power."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0, 4, 5, 6, 0x0102], output_clusters=[0x000a, 0x0019]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
            2: {
                # "profile_id": 260, "device_type": "0x0202",
                # "in_clusters": ["0x0004","0x0005","0x0006","0x0102"],
                # "out_clusters": []
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [],
            },
            242: {
                # <SimpleDescriptor endpoint=242 profile=41440 device_type=97
                # input_clusters=[]
                # output_clusters=[33]
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
            242: {
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }


class TuyaTS130FTI2(CustomDevice):
    """Tuya smart curtain roller shutter Time In."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0203, device_version=1, input_clusters=[0, 4, 5, 6, 0x0102], output_clusters=[0x000A,25]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_CONTROLLER,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_CONTROLLER,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                ],
                OUTPUT_CLUSTERS: [Time.cluster_id, Ota.cluster_id],
            },
        },
    }


class TuyaTS130ESTC(CustomDevice):
    """Tuya ZigBee Curtain Switch Module with External Switch Type Cluster."""

    signature = {
        # SizePrefixedSimpleDescriptor(endpoint=1, profile=260, device_type=0x0202, device_version=1, input_clusters=[0x0000, 0x0004, 0x0005, 0x0006, 0x0102, 0xE001], output_clusters=[0x000a, 0x0019]))
        MODEL: "TS130F",
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_DEVICE,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    OnOff.cluster_id,
                    WindowCovering.cluster_id,
                    TuyaZBExternalSwitchTypeCluster.cluster_id,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
            242: {
                # <SimpleDescriptor endpoint=242 profile=41440 device_type=97
                # input_clusters=[]
                # output_clusters=[33]
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }
    replacement = {
        ENDPOINTS: {
            1: {
                PROFILE_ID: zha.PROFILE_ID,
                DEVICE_TYPE: zha.DeviceType.WINDOW_COVERING_CONTROLLER,
                INPUT_CLUSTERS: [
                    Basic.cluster_id,
                    Groups.cluster_id,
                    Scenes.cluster_id,
                    TuyaWithBacklightOnOffCluster,
                    TuyaCoveringCluster,
                    TuyaZBExternalSwitchTypeCluster,
                ],
                OUTPUT_CLUSTERS: [
                    Time.cluster_id,
                    Ota.cluster_id,
                ],
            },
            242: {
                PROFILE_ID: 41440,
                DEVICE_TYPE: 97,
                INPUT_CLUSTERS: [],
                OUTPUT_CLUSTERS: [GreenPowerProxy.cluster_id],
            },
        },
    }

If you are not familiar with, there are some guides here to install local quirk:

Thanks for your reply. I already noticed none of them were duals, but I was assuming adding an extra endpoint would solve this.

I’ll give the file you added a try tomorrow, bedtime for now!

Also updated the opening post 😃

Read more comments on GitHub >

github_iconTop Results From Across the Web

TuYa TS130F control via MQTT - Zigbee2MQTT
Integrate your TuYa TS130F via Zigbee2MQTT with whatever smart home infrastructure you are using ... Put the device into calibration mode, see below....
Read more >
Where to start writing Custom driver for TS130F smart curtain ...
So I'm sorry, I can't help. You should be able to query any Zigbee device for the clusters it supports, and people used...
Read more >
ZHA Curtains module calibration - Home Assistant Community
Request for device support for ZHA must be done here: ... Curtain Module QS-Zigbee-C01, also in Home Assistant recognised as Tuya TS130F.
Read more >

github_iconTop Related Medium Post

No results found

github_iconTop Related StackOverflow Question

No results found

github_iconTroubleshoot Live Code

Lightrun enables developers to add logs, metrics and snapshots to live code - no restarts or redeploys required.
Start Free

github_iconTop Related Reddit Thread

No results found

github_iconTop Related Hackernoon Post

No results found

github_iconTop Related Tweet

No results found

github_iconTop Related Dev.to Post

No results found

github_iconTop Related Hashnode Post

No results found
Previous page

_TZE200_3towulqd TS0601 Tuya Motion Sensor with illuminance sensor

Next page

[BUG] TS0002 switched on and off as a group from HA
