Help configuring multi-DP routing

Hello all,

I can’t seem to get inter-vlan routing working at all. I have a Zodiac GX that is connected to a Zodiac FX - I believe I have trunked them together correctly (yaml config below). I can successfully ping the faucet_vip address of a vlan from a host attached to a port in the same native vlan (e.g. host with ip 172.16.0.50 connected to interface 1 on the Zodiac GX can ping 172.16.0.254). However I cannot ping from a host with ip 172.16.0.50 connected to interface 1 of the GX to a host with ip 10.0.0.50 connected to interface 2 of the FX.

I have set the Default GWs of both hosts to there respective faucet_vip.

(Zodiac GX interface 4 is trunked to Zodiac FX interface 1)

I hope this makes sense, please help 😃

version: 2

vlans:
        private:
                name: "private"
                vid: 100
                max_hosts: 255
                faucet_vips: ["172.16.0.254/16"]
        guest:
                name: "guest"
                vid: 200
                max_hosts: 255
                faucet_vips: ["10.0.0.254/24"]
routers:
        home-router:
                vlans: [private, guest]
dps:
        zodiacgx:
                dp_id: 0x************
                description: "ZodiacGX"
                hardware: "ZodiacGX"
                interfaces:
                        1:
                                name: "eth0.1"
                                native_vlan: private
                        2:
                                name: "eth0.2"
                                native_vlan: private
                        3:
                                name: "eth0.3"
                                native_vlan: private
                        4:
                                name: "eth0.4"
                                tagged_vlans: [private,guest]
        zodiacfx:
                dp_id: 0x************
                description: "ZodiacFX"
                hardware: "ZodiacFX"
                interfaces:
                        1:
                                tagged_vlans: [private,guest]
                        2:
                                native_vlan: guest
                        3:
                                native_vlan: guest

[gizmoguy]

Yes by the two routers I mean 172.16.0.1 and 172.16.0.254. You aren’t meant to route inside a single L2 domain and you have to remember that Inter-VLAN Routing (IVR) in faucet is real L3 routing.

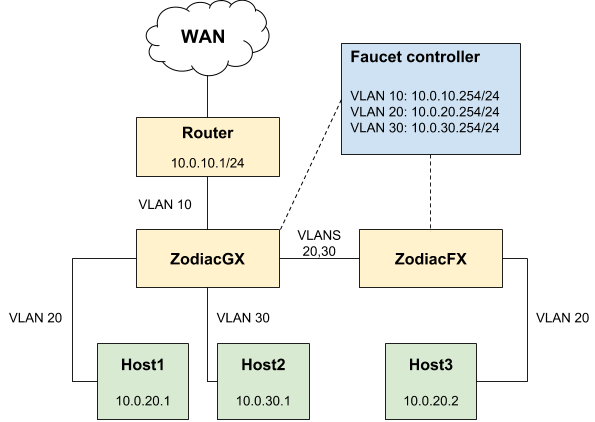

Something more like this work work better:

To actually get internet in this setup you will need to setup some additional NAT rules on your OpenWRT router and also add a static route inside VLAN10 for 0.0.0.0 toward 10.0.10.1.

[gizmoguy]

Glad to hear the GX now works as expected.

Regarding the Zodiac FX problems, could you let me know what firmware version you are running? I will spin up one of mine here and see if I can track down the problem the tagged VLAN problem. Zodiac FX is an open source project so best we can do is submit a bug report on their repo and see if they are able to fix.
