Need help to include new Motion-Sensor (radar module)

See original GitHub issue

Hi,

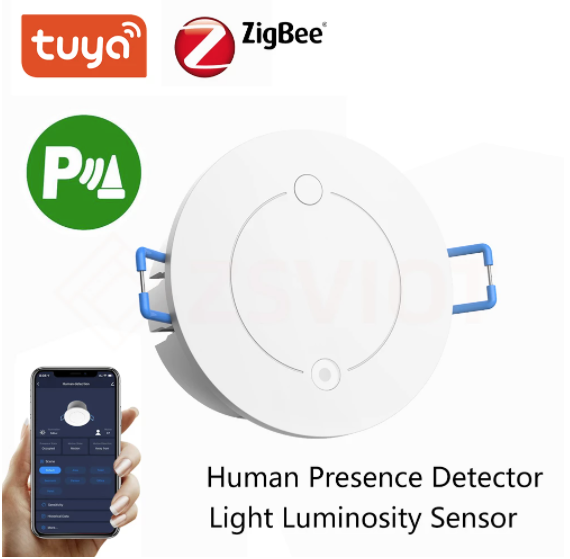

I bought the following device:

Implemented with this external Converter:

const fz = require('zigbee-herdsman-converters/converters/fromZigbee');
const tz = require('zigbee-herdsman-converters/converters/toZigbee');
const exposes = require('zigbee-herdsman-converters/lib/exposes');
const reporting = require('zigbee-herdsman-converters/lib/reporting');
const extend = require('zigbee-herdsman-converters/lib/extend');
const e = exposes.presets;
const ea = exposes.access;

const definition = {
    fingerprint: [{modelID: 'TS0601', manufacturerName: '_TZE200_vrfecyku', type: 'Router', ieee_adress: '0x804b50fffee109d5'}],
    model: 'TS0601',
    vendor: 'TuYa',
    description: 'Radar Motion Sensor',
    fromZigbee: [
        fz.ignore_basic_report, // Add this if you are getting no converter for 'genBasic'
        fz.tuya_data_point_dump, // This is a debug converter, it will be described in the next part
    ],
    toZigbee: [
        tz.tuya_data_point_test, // Another debug converter
    ],
    // onEvent: tuya.setTime, // Add this if you are getting no converter for 'commandSetTimeRequest'
    configure: async (device, coordinatorEndpoint, logger) => {
        const endpoint = device.getEndpoint(1);
        await reporting.bind(endpoint, coordinatorEndpoint, ['genBasic']);
    },
    exposes: [
        // Here you should put all functionality that your device exposes
    ],
};

module.exports = definition;

Getting the following Announces within z2m:

Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,38],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":69}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,5],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":69}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[1],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":69}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[2],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":70}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,7],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":70}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,24],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":70}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[1],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":70}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,1],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":71}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[2],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":71}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,5],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":71}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0],"type":"Buffer"},"datatype":4,"dp":114,"fn":0,"status":0,"transid":72}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,1],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":72}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[2],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":72}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,27],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":72}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0],"type":"Buffer"},"datatype":4,"dp":114,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,1],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,26],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,15],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,20],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[1],"type":"Buffer"},"datatype":4,"dp":114,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0],"type":"Buffer"},"datatype":4,"dp":114,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,12],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[1],"type":"Buffer"},"datatype":4,"dp":102,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0
Received Zigbee message from '0x804b50fffee109d5', type 'commandSetDataResponse', cluster 'manuSpecificTuya', data '{"data":{"data":[0,0,0,1],"type":"Buffer"},"datatype":2,"dp":115,"fn":0,"status":0,"transid":73}' from endpoint 1 with groupID 0

The Dump: tuya.dump.txt

But I don’t understand, how to convert that to z2m.

So can you plaese help me?

Greetings Burkhard

Issue Analytics

State:
Created 2 years ago
Comments:13 (13 by maintainers)

Top GitHub Comments

1reaction

danieledwardgeorgehitchcockcommented, Oct 1, 2021

I am currently trying to integrate a TuYa device into Zigbee2MQTT and can give you some pointers to get you started.

If you have the TuYa Zigbee Gateway, add the device to that. Sign up for the TuYa Cloud IoT API and link your accounts (there are several YouTube videos and tutorials if you google it). Once your accounts are joined, go to cloud->your api application name->devices, click on device and go to debug device. Go to the device logs tab and open up your browsers debug tools. Go to the Network tab in your browsers debug tools, then click on the select DP drop down at the top of the table on the page and pick the first datapoint name. Click search and watch the traffic come in in debug tools. You should find a list object in the network events. Click on it and scroll down to the Request Payload section. the code in the payload is the TuYa data point.

Map all of the codes available in the above to their names (you may need google translate for some of them).

Once you have that, you can then follow the tutorials for mapping the buffer values.

0reactions

Burki24commented, Oct 1, 2021

Thanks for your patience and your really great support.
