Support Zemismart (Tuya) smart plug

Hello!

I’m really thankful for all the efforts running this project, my Home Assistant works like a charm! ❤️

I just acquired a Zemismart ZigBee Smart Plug, and it does not seem to be supported by Zigbee2MQTT yet.

Looking at the logs, I identified its model ID and manufacturer name: TS011F, _TZ3000_hyfvrar3. I could not find the manufacturer name in the device files, but I found the model ID more than once.

To try and enable support on my Home Assistant, I created the following file:

// /config/zigbee2mqtt/_TZ3000_hyfvrar3.js
const tuya = require('zigbee-herdsman-converters/devices/tuya');
const ts011f_plug = tuya.find(element => element.model == "TS011F_plug");
ts011f_plug.fingerprint.push({modelID: 'TS011F', manufacturerName: '_TZ3000_hyfvrar3'});
module.exports = ts011f_plug;

This allows me to reuse an existing Tuya smart plug’s definition: https://github.com/Koenkk/zigbee-herdsman-converters/blob/e58938c8ca604e501458397243b694d094747442/devices/tuya.js#L650-L672

Updated Zigbee2MQTT’s configuration then restarted it, and voilà, my smart plug was supported!

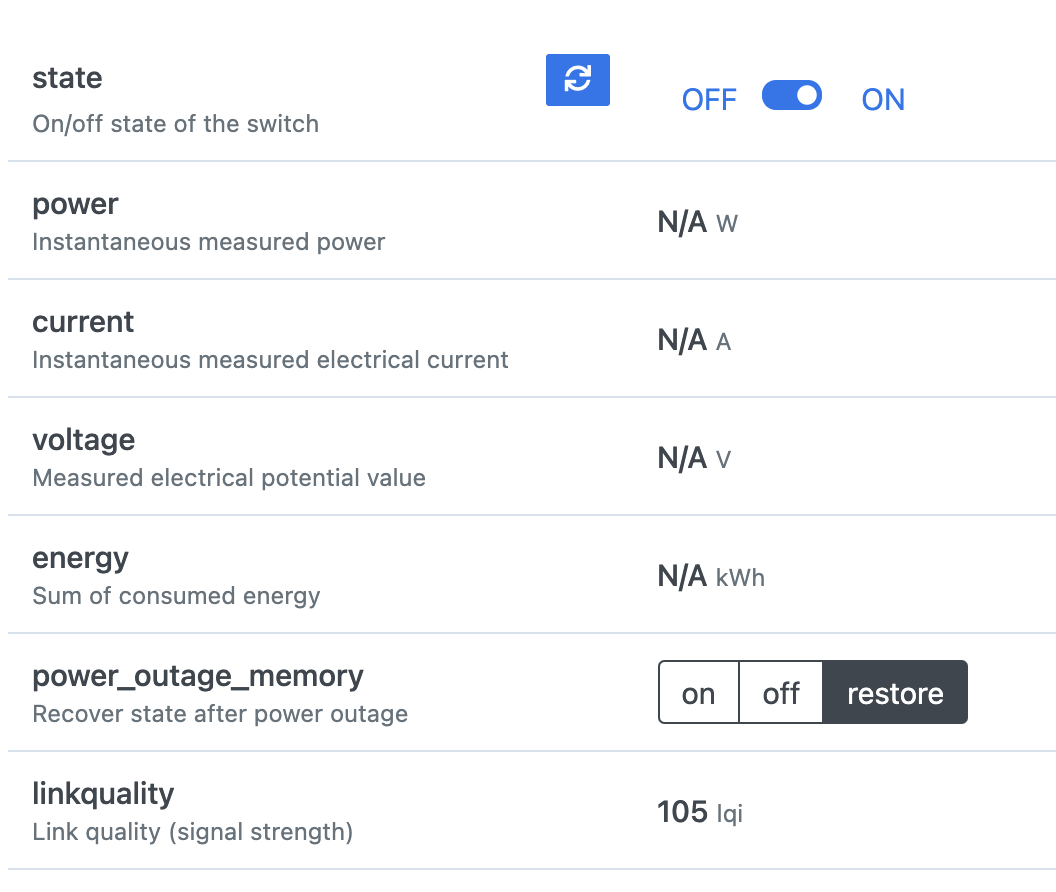

Unfortunately, it looks like this is not a perfect match:

state and power_outage_memory work pretty well (tested), but the rest seems not to.

Here is a log extract.

Zigbee2MQTT:info  2021-06-06 18:10:06: Zigbee: allowing new devices to join.
Zigbee2MQTT:info  2021-06-06 18:10:06: MQTT publish: topic 'zigbee2mqtt/bridge/response/permit_join', payload '{"data":{"time":254,"value":true},"status":"ok","transaction":"gmr2w-1"}'
Zigbee2MQTT:warn  2021-06-06 18:10:17: Device '0x84fd27fffe3e25a8' left the network
Zigbee2MQTT:info  2021-06-06 18:10:17: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"ieee_address":"0x84fd27fffe3e25a8"},"type":"device_leave"}'
Zigbee2MQTT:info  2021-06-06 18:10:17: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"left_network","meta":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"device_removed"}'
Zigbee2MQTT:warn  2021-06-06 18:10:17: Device '0x84fd27fffe3e25a8' left the network
Zigbee2MQTT:info  2021-06-06 18:10:17: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"ieee_address":"0x84fd27fffe3e25a8"},"type":"device_leave"}'
Zigbee2MQTT:info  2021-06-06 18:10:17: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"left_network","meta":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"device_removed"}'
Zigbee2MQTT:warn  2021-06-06 18:10:18: Device '0x84fd27fffe3e25a8' left the network
Zigbee2MQTT:info  2021-06-06 18:10:18: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"ieee_address":"0x84fd27fffe3e25a8"},"type":"device_leave"}'
Zigbee2MQTT:info  2021-06-06 18:10:18: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"left_network","meta":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"device_removed"}'
Zigbee2MQTT:info  2021-06-06 18:10:19: Device '0x84fd27fffe3e25a8' joined
Zigbee2MQTT:info  2021-06-06 18:10:19: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x84fd27fffe3e25a8","ieee_address":"0x84fd27fffe3e25a8"},"type":"device_joined"}'
Zigbee2MQTT:info  2021-06-06 18:10:19: Starting interview of '0x84fd27fffe3e25a8'
Zigbee2MQTT:info  2021-06-06 18:10:19: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x84fd27fffe3e25a8","ieee_address":"0x84fd27fffe3e25a8","status":"started"},"type":"device_interview"}'
Zigbee2MQTT:info  2021-06-06 18:10:19: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"device_connected"}'
Zigbee2MQTT:info  2021-06-06 18:10:19: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"interview_started","meta":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"pairing"}'
Zigbee2MQTT:debug 2021-06-06 18:10:20: Device '0x84fd27fffe3e25a8' announced itself
Zigbee2MQTT:info  2021-06-06 18:10:20: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"friendly_name":"0x84fd27fffe3e25a8","ieee_address":"0x84fd27fffe3e25a8"},"type":"device_announce"}'
Zigbee2MQTT:info  2021-06-06 18:10:20: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"announce","meta":{"friendly_name":"0x84fd27fffe3e25a8"},"type":"device_announced"}'
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"modelId":"TS011F"}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Skipping message, definition is undefined and still interviewing
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"manufacturerName":"_TZ3000_hyfvrar3"}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"powerSource":1}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"zclVersion":3}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"appVersion":67}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"stackVersion":0}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"hwVersion":1}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:33: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{"dateCode":""}' from endpoint 1 with groupID 0
Zigbee2MQTT:debug 2021-06-06 18:10:34: Received Zigbee message from '0x84fd27fffe3e25a8', type 'readResponse', cluster 'genBasic', data '{}' from endpoint 1 with groupID 0
Zigbee2MQTT:info  2021-06-06 18:10:34: Successfully interviewed '0x84fd27fffe3e25a8', device has successfully been paired
Zigbee2MQTT:info  2021-06-06 18:10:34: Device '0x84fd27fffe3e25a8' is supported, identified as: TuYa Smart plug (TS011F_plug)
Zigbee2MQTT:info  2021-06-06 18:10:34: MQTT publish: topic 'zigbee2mqtt/bridge/event', payload '{"data":{"definition":{"description":"Smart plug","exposes":[{"features":[{"access":7,"description":"On/off state of the switch","name":"state","property":"state","type":"binary","value_off":"OFF","value_on":"ON","value_toggle":"TOGGLE"}],"type":"switch"},{"access":1,"description":"Instantaneous measured power","name":"power","property":"power","type":"numeric","unit":"W"},{"access":1,"description":"Instantaneous measured electrical current","name":"current","property":"current","type":"numeric","unit":"A"},{"access":1,"description":"Measured electrical potential value","name":"voltage","property":"voltage","type":"numeric","unit":"V"},{"access":1,"description":"Sum of consumed energy","name":"energy","property":"energy","type":"numeric","unit":"kWh"},{"access":3,"description":"Recover state after power outage","name":"power_outage_memory","property":"power_outage_memory","type":"enum","values":["on","off","restore"]},{"access":1,"description":"Link quality (signal strength)","name":"linkquality","property":"linkquality","type":"numeric","unit":"lqi","value_max":255,"value_min":0},{"access":1,"description":"Link quality (signal strength)","name":"linkquality","property":"linkquality","type":"numeric","unit":"lqi","value_max":255,"value_min":0}],"model":"TS011F_plug","supports_ota":false,"vendor":"TuYa"},"friendly_name":"0x84fd27fffe3e25a8","ieee_address":"0x84fd27fffe3e25a8","status":"successful","supported":true},"type":"device_interview"}'
Zigbee2MQTT:info  2021-06-06 18:10:34: MQTT publish: topic 'zigbee2mqtt/bridge/log', payload '{"message":"interview_successful","meta":{"description":"Smart plug","friendly_name":"0x84fd27fffe3e25a8","model":"TS011F_plug","supported":true,"vendor":"TuYa"},"type":"pairing"}'
Zigbee2MQTT:debug 2021-06-06 18:11:52: Received Zigbee message from 'Bedroom T&H', type 'attributeReport', cluster 'msTemperatureMeasurement', data '{"measuredValue":2485}' from endpoint 1 with groupID 0
Zigbee2MQTT:info  2021-06-06 18:11:52: MQTT publish: topic 'zigbee2mqtt/Bedroom T&H', payload '{"battery":95,"humidity":65.67,"linkquality":73,"temperature":24.85,"voltage":2900}'
Zigbee2MQTT:debug 2021-06-06 18:12:05: Received MQTT message on 'zigbee2mqtt/0x84fd27fffe3e25a8/set' with data '{"state":"OFF"}'
Zigbee2MQTT:debug 2021-06-06 18:12:05: Publishing 'set' 'state' to '0x84fd27fffe3e25a8'
Zigbee2MQTT:debug 2021-06-06 18:12:05: Received Zigbee message from '0x84fd27fffe3e25a8', type 'attributeReport', cluster 'genOnOff', data '{"onOff":0}' from endpoint 1 with groupID 0
Zigbee2MQTT:info  2021-06-06 18:12:05: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":107,"power":null,"power_outage_memory":null,"state":"OFF","voltage":null}'
Zigbee2MQTT:info  2021-06-06 18:12:05: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":105,"power":null,"power_outage_memory":null,"state":"OFF","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:12:06: Received MQTT message on 'zigbee2mqtt/0x84fd27fffe3e25a8/set' with data '{"state":"ON"}'
Zigbee2MQTT:debug 2021-06-06 18:12:06: Publishing 'set' 'state' to '0x84fd27fffe3e25a8'
Zigbee2MQTT:info  2021-06-06 18:12:06: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":105,"power":null,"power_outage_memory":null,"state":"ON","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:12:06: Received Zigbee message from '0x84fd27fffe3e25a8', type 'attributeReport', cluster 'genOnOff', data '{"onOff":1}' from endpoint 1 with groupID 0
Zigbee2MQTT:info  2021-06-06 18:12:06: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":105,"power":null,"power_outage_memory":null,"state":"ON","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:12:08: Received MQTT message on 'zigbee2mqtt/0x84fd27fffe3e25a8/set' with data '{"power_outage_memory":"restore"}'
Zigbee2MQTT:debug 2021-06-06 18:12:08: Publishing 'set' 'power_outage_memory' to '0x84fd27fffe3e25a8'
Zigbee2MQTT:info  2021-06-06 18:12:08: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":110,"power":null,"power_outage_memory":"restore","state":"ON","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:12:56: Received MQTT message on 'zigbee2mqtt/0x84fd27fffe3e25a8/set' with data '{"power_outage_memory":"off"}'
Zigbee2MQTT:debug 2021-06-06 18:12:56: Publishing 'set' 'power_outage_memory' to '0x84fd27fffe3e25a8'
Zigbee2MQTT:info  2021-06-06 18:12:56: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":105,"power":null,"power_outage_memory":"off","state":"ON","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:12:57: Received MQTT message on 'zigbee2mqtt/0x84fd27fffe3e25a8/set' with data '{"power_outage_memory":"restore"}'
Zigbee2MQTT:debug 2021-06-06 18:12:57: Publishing 'set' 'power_outage_memory' to '0x84fd27fffe3e25a8'
Zigbee2MQTT:info  2021-06-06 18:12:57: MQTT publish: topic 'zigbee2mqtt/0x84fd27fffe3e25a8', payload '{"current":null,"energy":null,"linkquality":105,"power":null,"power_outage_memory":"restore","state":"ON","voltage":null}'
Zigbee2MQTT:debug 2021-06-06 18:13:00: Saving state to file /config/zigbee2mqtt/state.json
Zigbee2MQTT:debug 2021-06-06 18:13:19: Received MQTT message on 'zigbee2mqtt/bridge/request/device/configure' with data '{"id":"0x84fd27fffe3e25a8","transaction":"gmr2w-2"}'
Zigbee2MQTT:info  2021-06-06 18:13:19: MQTT publish: topic 'zigbee2mqtt/bridge/response/device/configure', payload '{"data":{"id":"0x84fd27fffe3e25a8"},"status":"ok","transaction":"gmr2w-2"}'

Based on this picture on the product page, I was expecting the smart plug to have some power monitoring ability, but I have no idea what I’d need to do to implement that. 😅

Would love to get some help and or guidance. 🙏🏻

[Koenkk]

This will be fixed with the next z2m release.

[Koenkk]

Added the device (without power monitoring capabilities). Assuming this can be closed now.

Changes will be available in the dev branch in a few hours from now. (https://www.zigbee2mqtt.io/how_tos/how-to-switch-to-dev-branch.html)
