norm_hist and kde

Hi all,

(first of all: awesome library, I love it)

I am wondering about the default behavior of distplot when norm_hist is False.

At least on 0.8.0, when

sns.distplot(x, norm_hist=False)

produces a figure that is 1) normalized and 2) still has the KDE, which is a bit of a gotcha (i.e. unless you carefully read the docs for norm_hist and kde and infer if kde is default-True, and it might override norm_hist=False.

If you run:

sns.distplot(x, norm_hist=False, kde=False)

This will give you an unnormed, sans-KDE distribution.

Which itself is a little disappointing since the KDE is actually super nice for understanding the structure of the data.

I can think of two potential ways to address this mild annoyance:

1. default kde=None and have it infer if it should compute a KDE from the value of norm_hist, or
2. if norm_hist=False, compute the KDE of the normalized figure, but then multiply it by the integration value of the distribution to put it on the plot. (I am not a statistician, so this seems fine to me, but perhaps isn’t kosher for some reason?)

I’d be open to doing this myself (esp 2), as long as I know you’ll accept the PR 😅 .

Cheers!

[Abysselene]

Hi. Actually I’m quite fond of norm_hist and would appreciate an evolution of it rather than seeing it disappear. As seen in #479 #1396 and #61, in certain situations it’s problematic to not be able to scale or “denormalize” a kde in distplot.

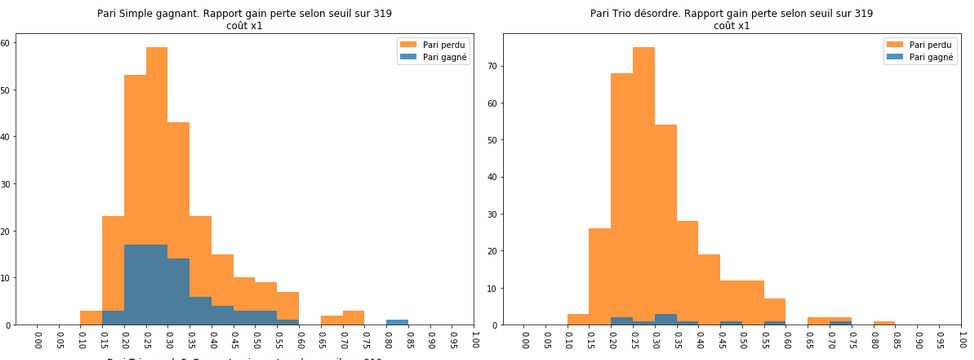

Here is my situation, I plot 2 histograms on the same axes to see the differences. At first I used matplotlib’s hist as a ‘stepfilled’ with low alpha.

nWidthBar=20
plt.hist([tJour["Success"], tJour["Fail"]], bins=np.arange(0.0, 1.0, 1/nWidthBar), histtype='stepfilled', alpha=0.1, label=["Pari gagné", "Pari perdu"])

As you can see, values are between 0.0 and 1.0. Both sets can start and end with different minimal and maximal values. I had to set the bins as a list to correct this. Important: The sets don’t have the same quantity of values hence if normalized I will not be able to see where and how much one set is above the other.

I don’t really care about the values on y axis, I want to keep the proportion between both sets as said in #61 I wanted to have a better visualization with kde using distplot, I know kde is about density and having an area of 1 under the curve but as I said I don’t care about the values, I just need to keep the correct proportion between both sets. Here is the code, range was used to keep the same bins width with both sets with kde.

ax = plt.subplot(nbLignes, 3, nInd+1)
sns.distplot(tJour["Success"], ax=ax, norm_hist=False, bins=20, hist = True, kde = True, hist_kws={'range':(0,1)}, kde_kws = {'shade': True, 'linewidth': 3, 'bw': 1/40}, label="Pari gagné")
sns.distplot(tJour["Fail"],    ax=ax, norm_hist=False, bins=20, hist = True, kde = True, hist_kws={'range':(0,1)}, kde_kws = {'shade': True, 'linewidth': 3, 'bw': 1/40}, label="Pari perdu")

You can see the problem, both sets are normalized without taking into account the other so the blue set becomes as big as the orange one. It doesn’t show anymore that I have very few blues.

I would have like to be able to correct this by giving both sets to one distplot rather than doing 2 distplots or by adding something like norm_kde=False to keep the height of the kde as it is for the histogram. I did it by drawing on different axes and changing the ylim of each kde in function of the area occupied by each set since whatever the base area, a kde will have an area of 1.0

nWidthBar = 20
arr, _, _ = plt.hist([tJour["Success"], tJour["Fail"]], bins=np.arange(0.0, 1.0, 1/nWidthBar), histtype='stepfilled', alpha=0.1, label=["Pari gagné", "Pari perdu"])
tSurfaces = []
for tab in arr: # get original areas
	tSurfaces.append(np.sum(tab)/nWidthBar)
ax1 = ax.twinx()
ylimMax = ax.get_ylim()[1]
ax1.set_ylim(top=ylimMax/tSurfaces[0]) # scale kde set0
ax1.yaxis.set_ticks([])
sns.distplot(tJour["Succes"], ax=ax1, bins=nWidthBar, hist = False, kde = True, hist_kws={'range':(0,1)}, kde_kws = {'shade': True, 'linewidth': 3, 'bw': 1/40}, color='C0')
ax2 = ax.twinx()
ax2.set_ylim(top=ylimMax/tSurfaces[1]) # scale kde set 1
ax2.yaxis.set_ticks([])
sns.distplot(tJour["Fail"],    ax=ax2, bins=nWidthBar, hist = False, kde = True, hist_kws={'range':(0,1)}, kde_kws = {'shade': True, 'linewidth': 3, 'bw': 1/40}, color='C1')

So what I mean is:

• With multiple sets to plot, normalized or not, sometimes it’s important to keep the relative proportion to compare them.
• I prefer to compare them with kde over histograms.
• A lot of code has to be written rather than just giving a list with both sets to distplot (like in matplot.hist) and setting a norm=False

[mwaskom]

Closed with #2125
