Follow up work on `Circuit._repr_svg_`

See original GitHub issue

Is your feature request related to a use case or problem? Please describe.

@mpharrigan did an amazing job working on adding the SVG representation for a Cirq.Circuit. He left some TODOs in his Issue (#2313). In this issue, I plan to address them and open them for further discussion.

Describe the solution you’d like Listing the tasks from #2313,

Bugs

[BUG] Take care of the SVG circuits when the cirq.Moment() is empty (Currently, it fails).
[BUG] Refactor the rendering code such that circuits do not require integer coordinates for spacing routines.
[BUG] Implement a dynamic horizontal spacing framework for the rows in the SVGs of the circuits.

Design (A detailed RFC will be opened for this)

[DESIGN] Come up with a way to visualize custom gates (MatrixGate).
[DESIGN] Revamp the SVG output and make it more informative, illustrative, and colorful.

Testing

[TESTING] Add thorough tests.

Ideally, once this issue is fixed, we can think of moving the SVG representation under cirq.Circuit itself. This would require moving the code out from contrib.

Integration

[IMPLEMENTATION] Generalize the code used in cirq-core/cirq/circuits/_block_diagram_drawer.py and cirq-core/cirq/contrib/svg/svg.py to draw the blocks.
[INTEGRATION] Dissolve the SVGCircuit class and integrate SVGCircuit._repr_svg_ in cirq.Circuit (or even cirq.AbstractCircuit).

Additional context (e.g. screenshots)

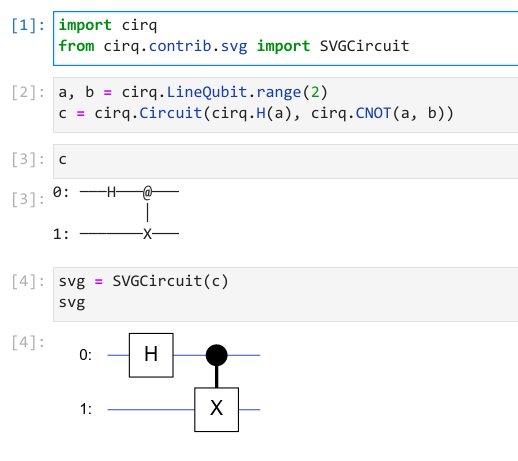

Current Implementation

Current Implementation
