GanttChart ProportionZoomStrategy problem

Hello there,

I have a problem with the ProportionZoomStrategy in the GanttChart.

This configuration works as expected:

return new sap.gantt.axistime.ProportionZoomStrategy({
                    locale: new sap.ui.core.Locale("de_DE"),
                    timeLineOptions: this._ZOOM_STRATEGY,
                    visibleHorizon: new sap.gantt.config.TimeHorizon({
                        startTime: "20171130000000",
                        endTime: "20180129000000"
                    }),
                    totalHorizon: new sap.gantt.config.TimeHorizon({
                        startTime: "20171130000000",
                        endTime: "20181101235959"
                    })
            });

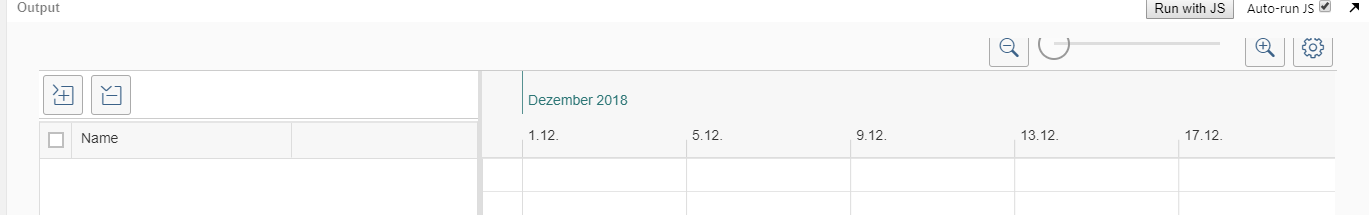

Result:

This not:

This configuration not works as expected:

return new sap.gantt.axistime.ProportionZoomStrategy({
                    locale: new sap.ui.core.Locale("de_DE"),
                    timeLineOptions: this._ZOOM_STRATEGY,
                    visibleHorizon: new sap.gantt.config.TimeHorizon({
                        startTime: "20181130000000",
                        endTime: "20190129000000"
                    }),
                    totalHorizon: new sap.gantt.config.TimeHorizon({
                        startTime: "20181130000000",
                        endTime: "20191101235959"
                    })
            });

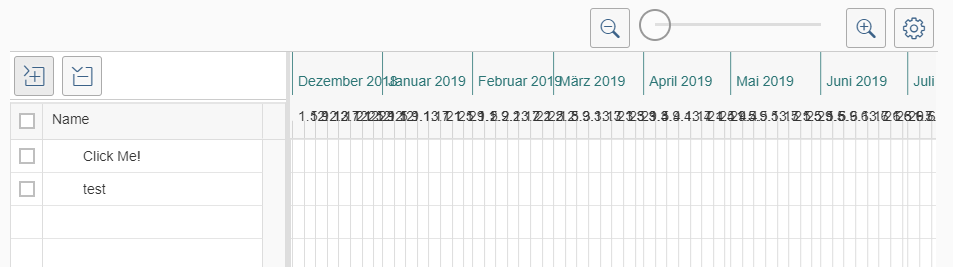

Result:

The only different between the above configurations is the year. I expected that the visible horizon in the second configuration is from 30.11.2018-29.01.2019. Here is an example:

https://jsbin.com/bicehunofa/1/edit?html,output

Regards

Jan

[Myge91]

Hi @Zionchen ,

it looks like this solved my problem. Thank you very much!

I guess I will not the only person who will run into this mistake. Could you raise an exception when the order is wrong and/or write that into the documentation?

Regards,

jan

[Zionchen]

Hello @Myge91 ,

Please set totalHorizon first, and then set visibleHorizon. Just because the visible range have a dependency on total range.

Please see https://jsbin.com/nerasogulo/edit?html,output

Best Regards, Zion Chen
