definition/values for APPS_OBJ?

See original GitHub issue

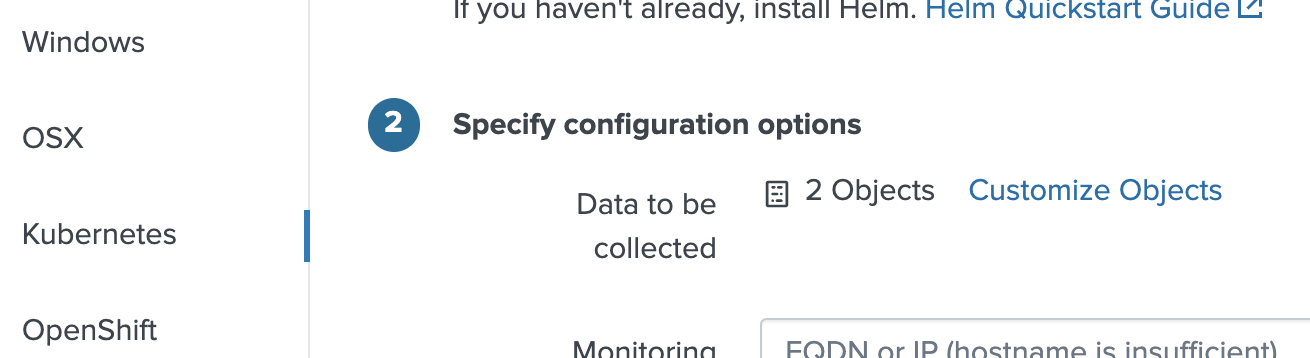

https://company.splunkcloud.com/en-US/app/splunk_app_infrastructure/configure shows following configuration code:

export MONITORING_MACHINE= && export HEC_TOKEN= && export HEC_PORT= && export GLOBAL_HEC_INSECURE_SSL=false && export OBJECTS_INSECURE_SSL=true && export METRICS_INSECURE_SSL=true && export JOURNALD_PATH=/run/log/journal && export KUBELET_PROTOCOL=https && export METRICS_INDEX=em_metrics && export LOG_INDEX=main && export META_INDEX=em_meta && export CLUSTER_NAME= && export HELM_RELEASE_NAME= && export KUBERNETES_NAMESPACE= && export CORE_OBJ=pods,nodes && export APPS_OBJ= && files=("kubernetes_connect_template.yaml" "deploy_sck_k8s.sh") && for each in "${files[@]}"; do wget -O-  https://company.splunkcloud.com/en-US/static/app/splunk_app_infrastructure/kubernetes_connect/"$each" > $each; done && wget https://github.com/splunk/splunk-connect-for-kubernetes/releases/download/1.2.0/splunk-connect-for-kubernetes-1.2.0.tgz -O splunk-connect-for-kubernetes.tgz && bash deploy_sck_k8s.sh

after filling out fields APPS_OBJ doesn’t get a value

Could you point me to some details on APPS_OBJ?

https://github.com/splunk/splunk-connect-for-kubernetes/issues/35 https://github.com/splunk/splunk-connect-for-kubernetes/issues/265

Issue Analytics

State:
Created 3 years ago
Comments:6 (3 by maintainers)

Top GitHub Comments

1reaction

matthewmodestinocommented, Apr 15, 2020

The APPS_OBJ map to Splunk object pod configmap, setting the the objects to collect.

https://docs.splunk.com/Documentation/InfraApp/2.0.3/Admin/AddDataKubernetes#2._Specify_configuration_options

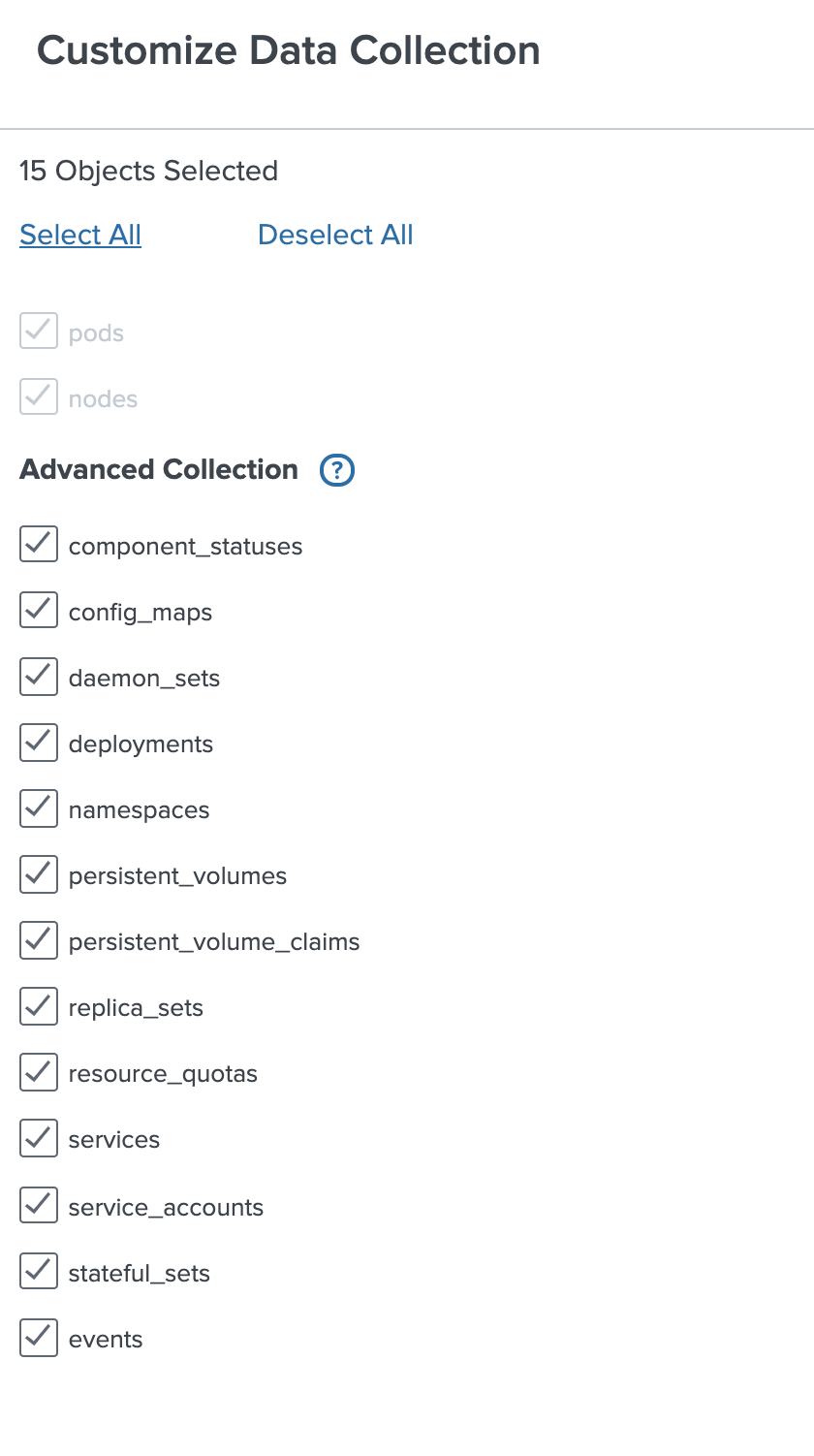

Splunk app for infra has a directory called ~/appserver/static/ where all the add data templates are kept. If you have a look at the kubernetes one, you’ll see it renders the objects like this in the values.yaml, when you select them all:

#local config for objects chart
splunk-kubernetes-objects:
  rbac:
    create: true
  serviceAccount:
    create: true
    name: splunk-kubernetes-objects
  kubernetes:
    insecureSSL: true
    clusterName: MicroK8s
  objects:
    core:
      v1: [{"name":"pods", "interval":"60s"},{"name":"nodes", "interval":"60s"},{"name":"component_statuses", "interval":"60s"},{"name":"config_maps", "interval":"60s"},{"name":"namespaces", "interval":"60s"},{"name":"persistent_volumes", "interval":"60s"},{"name":"persistent_volume_claims", "interval":"60s"},{"name":"resource_quotas", "interval":"60s"},{"name":"services", "interval":"60s"},{"name":"service_accounts", "interval":"60s"},{"name":"events", "mode":"watch"},]
    apps:
      v1:
        [{"name":"daemon_sets", "interval":"60s"},{"name":"deployments", "interval":"60s"},{"name":"replica_sets", "interval":"60s"},{"name":"stateful_sets", "interval":"60s"},]
  splunk:
    hec:
      indexName: em_meta

App for infra doesnt expose all possibilities, but it uses many of them. but technically you can call any valid k8s endpoint supported by the ruby client we use.

https://github.com/splunk/splunk-connect-for-kubernetes/blob/20e67c6f2dcf4d06f6efc7cc6763126946a6956f/helm-chart/splunk-connect-for-kubernetes/values.yaml#L492-L546

0reactions

matthewmodestinocommented, Apr 15, 2020

anytime! let me know if you get stuck!
